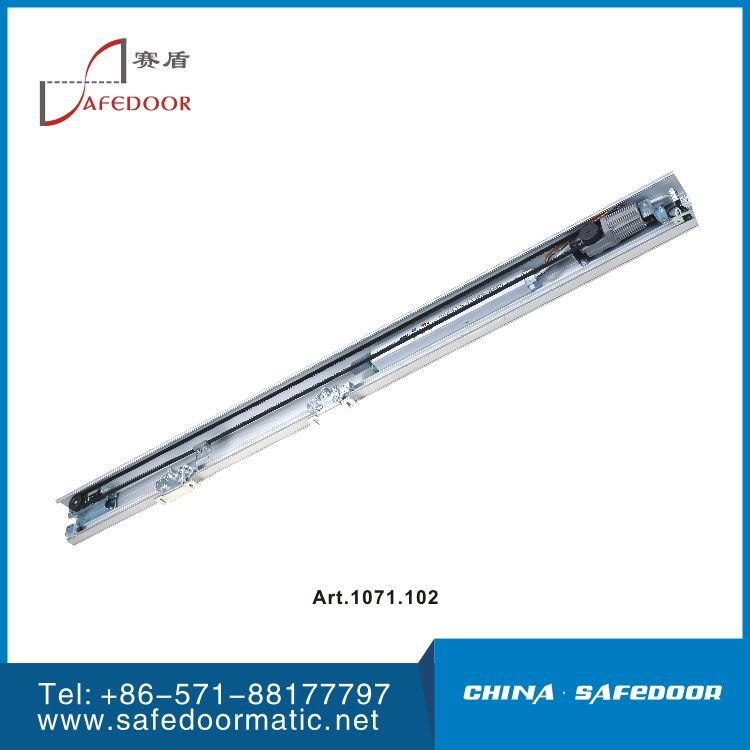

As a powerful automatic sliding door operator, the Art.1071.102 is suitable for heavy duty doors. Thanks to the anti-drop off carriage, it will not drop from the guide rail. The sound absorbing rail embedded in rubber mat make it almost silent when operating.
This model of products are sold very well in many countries. One of our regular customer from Brazil purchase this every month.
Features:
Art. 1071.102
* Superior microprocessor technology precisely controls the door wing’s running speed, travel distance, with beautiful operation curve
* Reliable guardian function: If detects illegal door opening attempt, the motor will enhance the force to make the door stay closed
* Pulling or pushing the door will not cause software scramble contributed by the close-loop control technology
* Permanent open/ lock/ partial open/exit only/ auto, 5 status available by remote control or 5 position key switch
* Superior safety care, reverse immediately against obstruction on door’s closing, and stop encountering obstacles on door’s opening
* Digital screen, button adjusting, easier for debugging
* Longer lifetime, more than 2 million failure-free test
Technical parameters:
Specifications | 1071.102 | |
Door type | Single | Bi-parting |
Door weight (max)(kg) | 1x180 | 2x150 |
Clear passage width(mm) | 600~2000 | 600~3000 |
Power voltage(VAC, Hz) | 220V, 50/60Hz | |
Opening speed (adjustable) (mm/s) | 100~600 | |
Closing speed (adjustable) (mm/s) | 100~550 | |
Hold-opening time (adjustable)( s) | 1~30 | |
Motor (VDC) | 24 | |
Motor power (W) | 60 | |
Consumption power(W) | 150 | |
Working temperature(℃) | -20~+70 | |
Class of protection | IP20 | |
