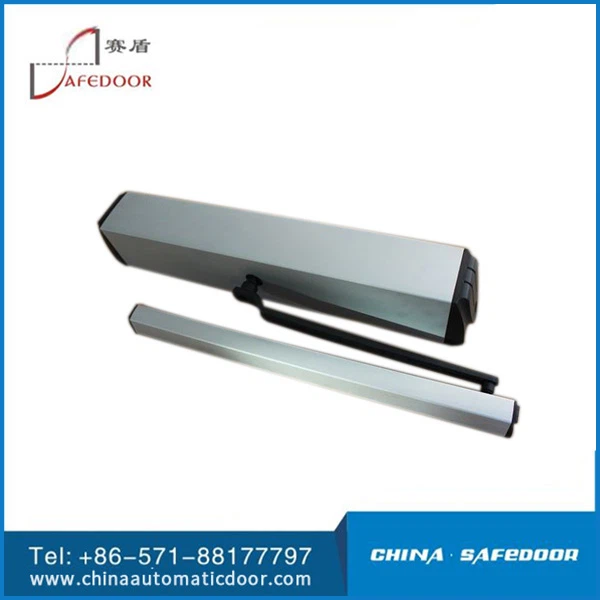

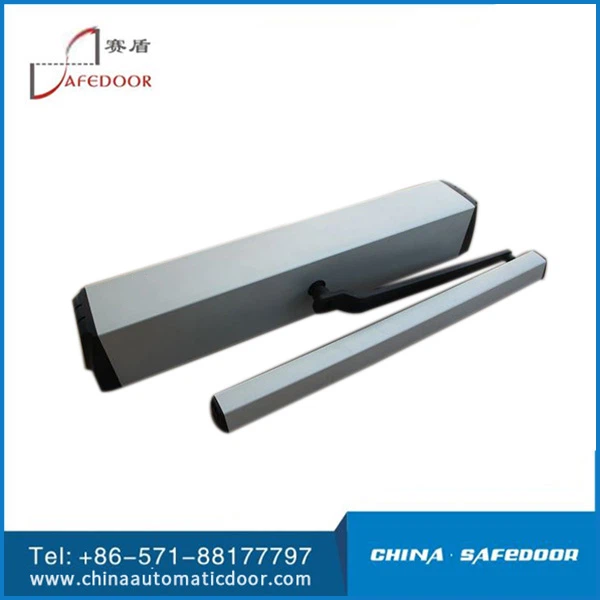

Art 1092.1820 is the ideal swing door operator for applications that need reliable, durable entrances with the strength to withstand continuous usage. It is easy and convenient for you to install it and adjust the running parameters. The swing door operator suits both left and right hand doors, supports building intercom system, access control system, wall switch, motion sensor, electric lock and remote controls. Swing door operators from SAFEDOOR therefore satisfy a broad range of demands. It is beneficial for any commercial, civil or public environment, bestowing any manual door with the complete, effortless convenience of an automatic door.
Swing Door Operator Wind Resistant Features:
Extensive: Suitable for office buildings, storefronts,banks, factories, restaurants, hotels, shopping centers,laboratories,hospitals, etc., to facilitate the walking of people and the smooth flow of goods.
Reliability: The microcomputer controller uses technology to detect the condition of the door (size, weight), set the operating parameters, keep the door in good running state,and have memory, correction function and intelligent function.With the use of remote control, it can reach the entry and exit of current staff, which can eliminate the safety ofunmanned door locks.
Safety: When the door leaf is in the process of closing the door, if an abnormal situation such as an obstacleor a human body is encountered, the door leaf can be immediately reversed and returned to prevent the pinch event or the machine from being damaged, so that the personnel can enter and exit safely.
Energy-saving: Careful design and production ensure smooth flow. At the same time, sound insulation, insulation and dustproof effect can reduce energy consumption in buildings.
Optional accessories:
Swing Door Operator Wind Resistant Technical parameters: ★Standard
Specifications | 1092.1820A | 1092.1820B |
Door width(max) inch (mm) | 39’’ (1200) | 47’’ (1200) |
Door weight(max) lbs.(kg) | 220 (100) | 220 (100) |
Product dimensions inch (mm) | 22.8’’x 3.1” x3.5” (580 x 80 x 90) | 29.5’’x 3.9” x3.9” (750 x 100 x 100) |
Product weight (kg) | 6 | 6 |
Output torque (N.m) | 75 | 75 |
Power consumption(W) | 45 | 45 |
Power standby (W) | <2 | <2 |
Power required (VAC, Hz) | 110/220, 50/ 60 | 110/220, 50/ 60 |
Rated current (A) | <1 | <1 |
Power output(max)(VDC mA) | 12, 500 | 12, 500 |
Shaft opening angle (°) | 45~150 | 45~150 |
Opening/closing time(sec.) | 3~8 | 3~8 |
Hold-open time(sec.) | 0~30 | 0~30 |
Ambient temperature (C) | -40-+85 | -40-+85 |
Protection class | IP54 | IP54 |
Compression force on the door | 0~10 | 0~10 |
Left/ right hand setting | 0/1 | 0/1 |
Push & Go function | ★ | ★ |
Protection against obstruction | ★ | ★ |
