In Ground Swing Gate Motor

Art.No.1024.101

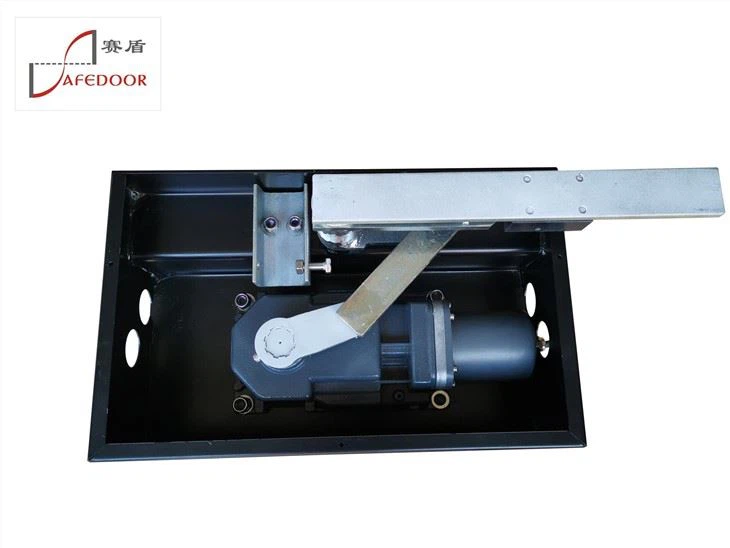

The Art.1024.101 is designed for swing gate weighs Max.500kgs per leaf. It installed completely in the ground, with only a piece of stainless steel exposed. Thus, it is suitable for doors that emphasizes aesthetics on account of its concealed installation.

Send Inquiry

Description

Technical Parameters

In Ground Swing Gate Motor Features:

*Powerful AC/DC motor, can open heavy gate up to max.500kgs per leaf steadily.

*Anti-corrosion and waterproof material, ensures normal operation.

*In case of emergency, the gate can be opened and closed manually by release key.

*Easy installation and low maintenance. When in need of repair, not necessary to disassemble the gate from the embed box.

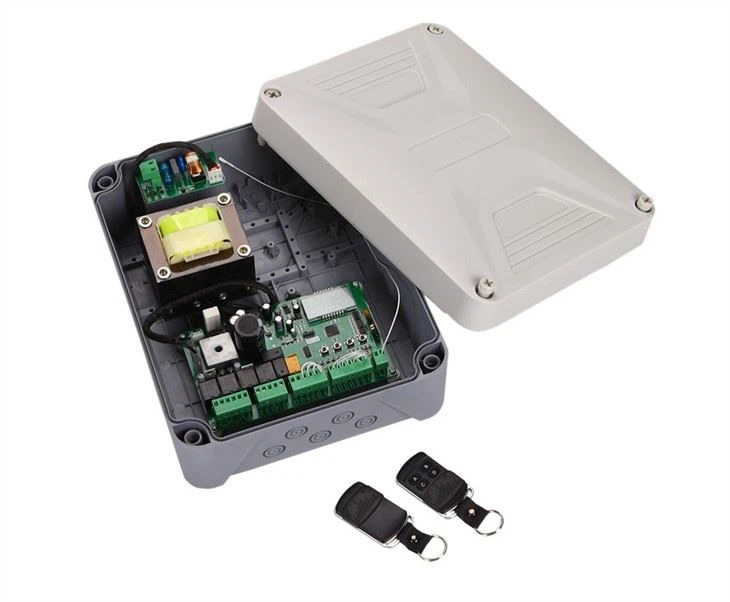

*LCD screen control panel, soft start and soft stop, anti-crush protection.

In Ground Swing Gate Motor Technical parameters:

Specifications	1024.101	1024.101D
Gate width/leaf (m)	3.5
Gate weight/leaf (Kg)	500	300
Power supply (VAC, Hz)	230, 50/ 110, 60
Motor voltage (V)	230	24
Power (W)	300	70
Rotating speed (r/m)	1450	1800
Thrust (N.m)	700	500
Opening speed to 90︒(s)	10
Protection class	IP67
Ambient temperature	-20℃-50℃
