Economic swing gate opener
This is a very stylish, thin and robust linear swing gate motor for residential gates up to 4m & 500kg/leaf. Thanks to its small size, it is allowed to be installed in space limited place.
Economic Swing Gate Opener Features:
* Compact size Ideal for limited space
* Maintenance free, not require periodic lubrication and is designed to be always ready for use, even in the worst weather conditions.
* Equipped with strong and high-precision driving screw and lead, guarantee steady operation.
* Magnetic limit switch (optional) guarantees the accurate desired opening position.
* The actuators are self-locking. In case of power failure, the gate can be opened and closed manually by release key.
* Soft start and stop, reversing against obstacles ensure safety and reliability.
* Automatically detects any power failure and activates emergency operation with the backup batteries (optional).
Economic Swing Gate Opener Technical parameters:
|
Specifications |
1024.102A |
1024.102B |
1024.103A |
1024.103B |
|
Gate width/ leaf(m) |
2.5 |
3.5 |
3 |
4 |
|
Gate weight/leaf (kg) |
500kg |
|||
|
Power supply |
220VAC/50Hz |
|||
|
Motor power(V) |
24 |
220 |
24 |
220 |
|
Rated current(A) |
5.2 |
1.5 |
5.2 |
1.5 |
|
Stroke (mm) |
400 |
600 | ||
|
Max. thrust force (N) |
1800 |
2800 |
1800 |
2800 |
|
Protection |
IP45 |
|||
|
Working temperature (℃) |
-20℃~+50℃ |
|||
Standard:

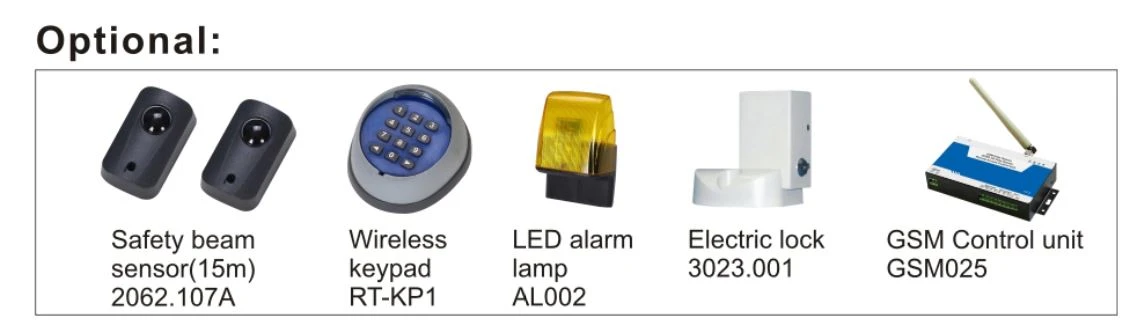

Optional:
