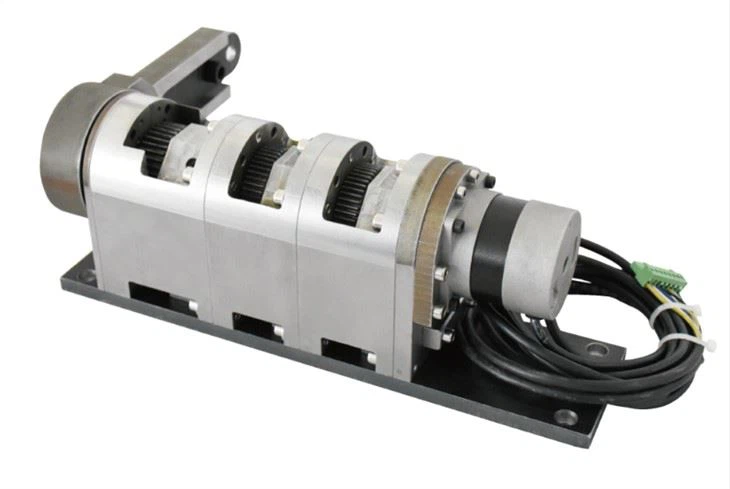

Automatic Swing Door Operator

This swing door operator comes with a fire alarm signal access terminal, which can be closed to prevent the spread of smoke or open to facilitate pedestrian escape under the condition of back-up power supply. It is suitable for indoor doors of apartments, villas and other residential quarters; enterprise / company doors, passage doors, conference room doors, public service areas / administrative institutions entrances, toilets and other indoor environments.

Send Inquiry

Description

Technical Parameters

1092.1823 Swing door operator

Automatic Swing Door Operator Features：

1. DC three-phase brushless motor can be used quickly and frequently.

2. Built-in control panel, digital adjustment of operating parameters is intuitive and convenient. Both the crank arm and the slide rail can be used together.

3. This swing door operator comes with a fire alarm signal access terminal, which can be closed to prevent the spread of smoke or open to facilitate pedestrian escape under the condition of back-up power supply.

4.Suitable for offices, shops, banks, factories, restaurants, hotels, shopping centers, laboratories, hospitals, etc., convenient for people to walk and the smooth flow of goods

Automatic Swing Door Operator

Specifications	1092.1823
Door width(max/ mm)	1500
Door weight(max/kg)	200
Product dimensions(mm)	325x 80x 120
Product weight(kg)	13
Output torque(N.m)	75
Motor power(W)	45
Shaft opening angle(°)	45-150
Opening speed (s)	3-8
Hold-open time (s)	0-30
Ambient temperature (℃)	-40- +85
Protection class	IP55
