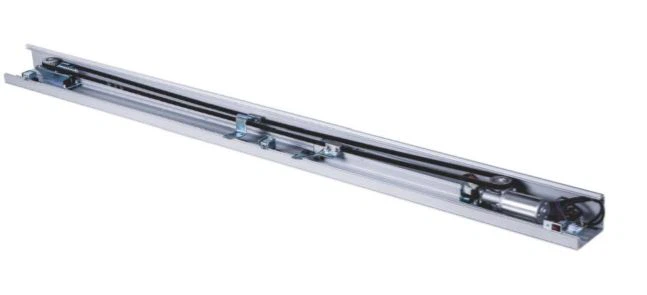

Heavy Duty Sliding Door Operator/opener Features:
* Sophisticated technology, controls the running speed and stroke accurately
* The controller can detect the condition of the door quickly
* Easy installation and debugging, very convenient
* Unique double-door interlock function can supports half-opening and full-opening.
* 5 status are available (permanent open/ lock/ partial open/ exit only/ auto), easy to change status remote control or 5 position key switch
* Powerful brushless round motor, high efficiency with low noise, stable and reliable when operating
* Overvoltage and overcurrent protection ensure safety
* The door can be opened manually when there is power failure
* Long service life, more than 2 million failure-free tests
Heavy Duty Sliding Door Operator/opener Technical specifications:
|
Door weight (single) |
1*200kgs |
|
Door weight (double) |
2*180kgs |
|
Door leaf width |
600~1800mm |
|
Opening speed |
100~500mm/s (adjustable) |
|
Closing speed |
100~500mm/s (adjustable) |
|
Motor details |
24V 100W 2300rpm |
|
Holding time |
0~60s (adjustable) |
|
Voltage |
AC90V~240V 50~60Hz |
|
Operating temperature |
-10℃~70℃ |
