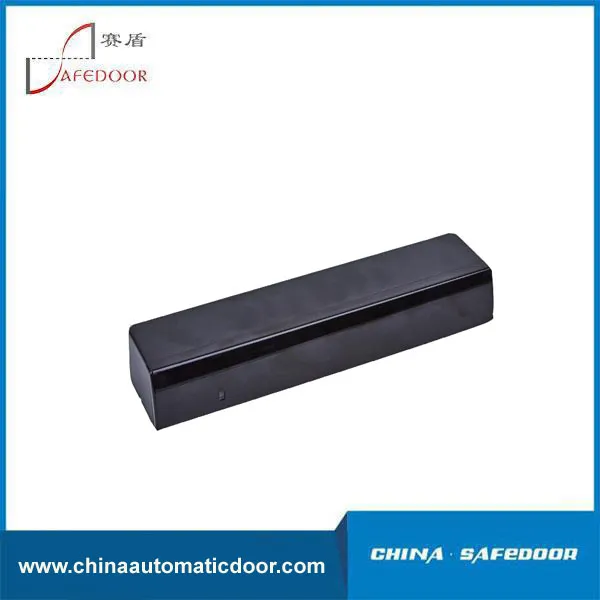

Microwave and infrared anti-pinch sensor Art. No 2052.041
Features:
1. 24.125GHz detecting module, immune to temperature, humidity.
2. Combination of microwave and infrared, high precision, low error rate.
3.With fast response speed, high sensitivity, wide sensing area, high accuracy and stable safety.
Microwave And Infrared Anti-pinch Sensor Technical data
Technical data | 2052.041 |
Cover color | Black |
Mounting height | 2m-3.5m |
IP | 54 |
Signal output | NO/NC |
Quiescent current | 70mA (12V) |
Working current | 78mA (12V ) |
Weight | 230g |
Operation temperature | -20℃- +55℃ |
Power supply | AC/DC 12-24V |
Learning time | 15s |
lnfrared sensor： | |
Infrared wavelength | 850nm |
Depth angle | -6°- +6° |
Output hold time | 1s |
Response time | <0.3s |
Microwave sensor: | |
Microwave type | 24.125GHz |
Depth angle | 25°- 45° |
