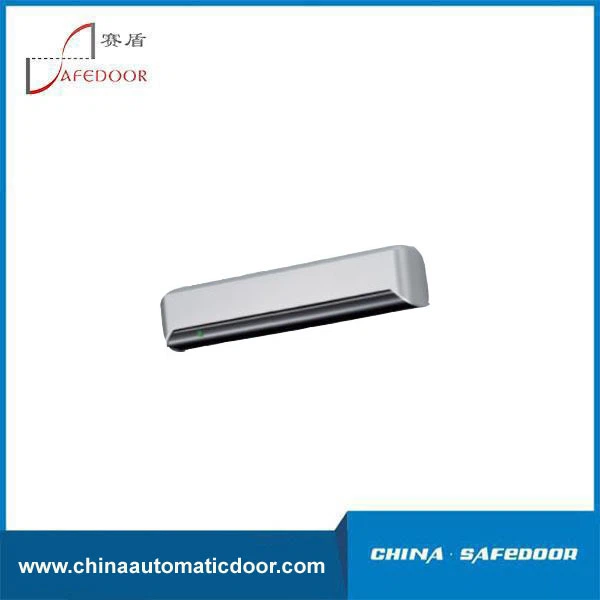

Infrared starting and presence sensor
Art.No.SDOA-4700
Safedoor Infrared Starting And Presence Sensor Features：
1. Unique technology and high security.
2. Motion sensing function, wide range of sensing.
3. Easy to adjust, the installation time can be greatly reduced by using the setting switch, so the sensor can be quickly adjusted in various applications.
4. It can be set very accurately, as long as the person or object is in or near the door area, even if it is stationary or temporarily stopped, the door can be kept open.
TSafedoor Infrared Starting And Presence Sensor echnical data： | |
Model | SDOA-4700 |
Power supply | AC/DC12-24 V(50/60Hz) |
Color | Silver / Black |
Install height (max) | 2.5-4.7m |
Detection mode | Active infrared reflection,full area stationary detection |
Power dissipation | 2.5W /4.0VA |
Indicator light | Green light: standby; red light: 1 column detection; orange light: 2-5 columns detection. |
Output | Output 1(N.C/N.O) No voltage50V 0.3A Input 2(N.C/N.O) No voltage50V 0.3A |
Stationary detection time | 2s\60s\600s\unlimited |
Output holding time | 0.5 s |
Ambient temperature | -20℃~+55℃ |
Weight | 270g |
Accessories | 4m cable x 1pc, installation drawings x 1pc, mounting screws x 2pc, operation manual x 1pc, area adjustment tool x 1pc. |
