Automatic Door Anti-pinch Beam Sensor
Automatic Door Anti-pinch Beam Sensor

Automatic Door Anti-pinch Beam Sensor

Product application: Safety beam is widely used in the automatic door security anti-clip (person or object) auxiliary function, which can accurately and reliably detect. Providing door opening signal to the automatic door by the person or the object to avoid the safety hidden trouble event of...

Send Inquiry

  • Product Details

Product application:

Safety beam is widely used in the automatic door security anti-clip (person or object) auxiliary function, which can accurately and reliably detect. Providing door opening signal to the automatic door by the person or the object to avoid the safety hidden trouble event of the automatic door.



Overall characteristics:

With the color corresponding plug-in socket, the wiring is simple, convenient and accurate.

Single beam and double beam can be selected by itself, and the distance can be flexibly selected.

It is composed of a pair of transmitting and receiving beam eye heads and a main controller, which has a long launch distance and is easy to install the beam eye, flexible and convenient wiring.

It unique high-precision calculation mode and sunlight filter factor, greatly improve the system's anti-jamming performance.

With receiver head shorted fault alarming function.



Technical parameter:

Input voltage

AC/DC 12~30V(-/+10%)

Contact output state

normally open and normally closed

Output Capacity

contact 1A/24VDC

Maximum distance to beam

10m

Beam eye size

18.24(L)*15(Φ)mm

Working current

72mA(DC 12V)

Quiescent Current

35mA(DC 12V)

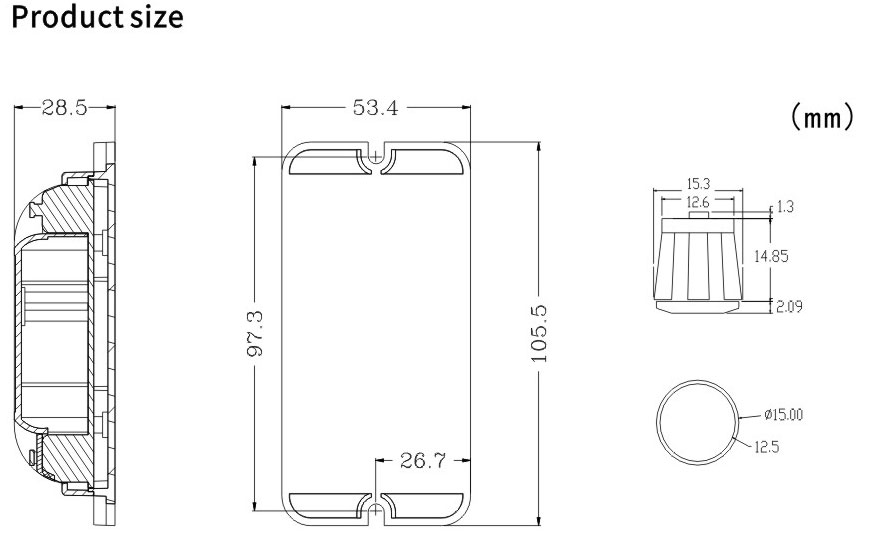

Controller size

105.5(L)*53.4(W)*28.5(H)mm

Safety beam eye surface mounted rack(CNB-218G)

28(L)*30(W)*18.5(H)mm

5

6
