The Art.1082.W3 is durable, stylish, and user-friendly. It is easy for you to install and debug it. The safety factor of this model is very high on account of emergent stop function, anti-bump sensor, anti-nip sensor strip and so on.
1082.W3

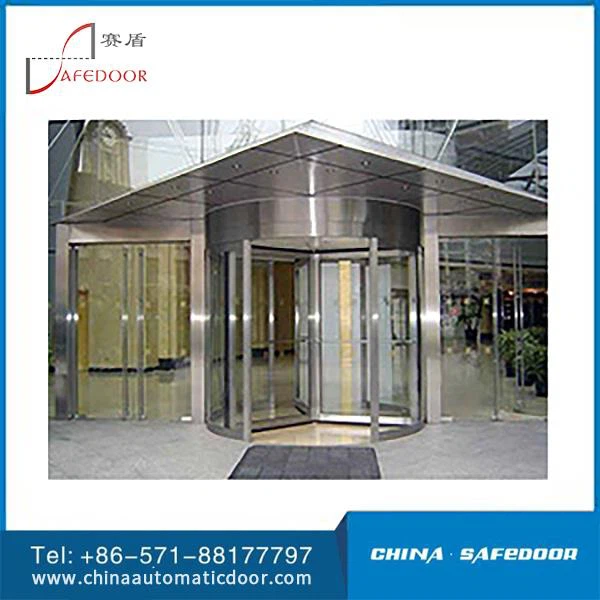

3 Wings Commercial Entrance Revolving Doors Features:
*Advancing outer curve wall load-bearing structure, much more steady than the post load-bearing model
*LED screen human-computer interaction interface, easy for initializing and adjusting. Installer can shoot the trouble by ERROR CODE displayed on LCD
*Handicapped- care running speed available
*Emergent stop function, solve any possible emergent case
*Door locking on night, safe for property
*Anti-bump sensor, anti-nip sensor strip protect pedestrian considerately
* Sensitivity against obstruction prevent the pedestrian from any injury
*Manual opening on power failure
*Alarm on illegal external pushing force when the door is locked (optional)
*Remote control available(optional)
*UPS backup battery available(optional)
3 Wings Commercial Entrance Revolving Doors Technical parameter:
|
Power supply(VAC, Hz) |
220±10%, 50 |
|
Totally rated power (W) |
1450 |
|
Illumination power(max)(W) |
500 |
|
Operating noise(dB) |
≤60 |
|
Revolving door power(max)(W) |
800 |
|
Sliding door power(max)(W) |
150 |
|
Load bearing of showcase(kg) |
≤20 |
|
Voltage withstand (V) |
1500 |
|
Load bearing of wheel (kg) |
＜300 |
|
Rotary speed(m/s) |
0.45～0.75 |
|
Waiting speed(m/s) |
0.3～0.35 |
|
Ambient temperature(℃) |
-30～+60 |
|
UPS maintaining time(hours) |
3 |
|
Wind resistance (grade) |
8 |
1082.W3
Specification（3-wing）
|
Inner diameter |
Outer diameter (Dm) |
Passage height |
Total height (Hm) |
Canopy height (CH) |
Entrance width (TW) |
|
2400 |
2516 |
2300-3300 |
2600-3900 |
300-600 |
1088 |
|
2600 |
2716 |
1188 |
|||
|
2800 |
2916 |
1288 |
|||
|
3000 |
3116 |
1388 |
|||
|
3200 |
3316 |
1488 |
|||
|
3400 |
3516 |
1588 |
|||
|
3600 |
3716 |
1688 |
|||
|
3800 |
3916 |
1788 |
|||
|
4000 |
4116 |
1888 |
|||
|
4200 |
4316 |
1988 |
