The aluminum bi folding door provide two-way traffic where the opening space are limited. The door panels fold when retracting for about 80% of the clearing opening size from wall to wall. The fast opening speed makes the passage be free and clear.
Art. 1093.201
Automatic Folding Door Features:
*Motor concealed at the top of the aluminum frame, neat and beautiful.
*Integral framework, soundproof, elegant and finger-protected.
*Superior safety reverse against obstruction on door closing, guarantee the security of people and pets.
*Multiple colors are available to meet your requirements.
*Aluminum profiles and tempered glass material, no formaldehyde, no pollution, easy to clean.
Automatic Folding Door Technical parameters:
Door type | Single, double |
Door height (max) | 3000mm |
Door width/leaf (max) | 560mm |
Wall to wall width | 1200-2400mm |
Power voltage | AC220V/50Hz, 110V/60Hz |
Motor power | 65W/24V |
Opening time | 2~4 sec |
Hold-opening time (adjustable) | 1~30 sec |
Ambient temperature | -20℃~+50℃ |
Accessories (optional):
Touchless IR hand switch Art. 2064.211S
Unidirectional microwave sensor Art.No 2053.204HD

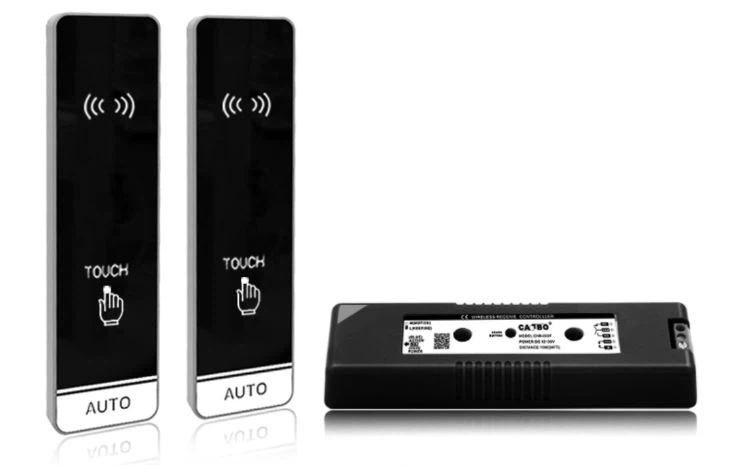

Wireless touchless IR handwave and touch combination switch Art.2014.602H

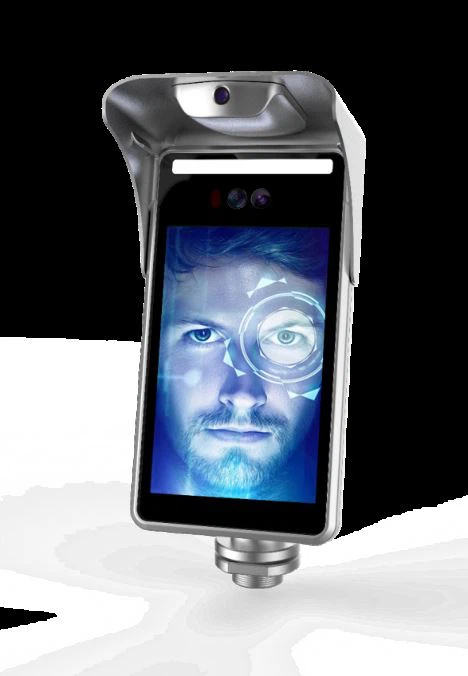

Temperature screening access control with face recognition Art. 2012.1082
