The Art.1055.111 is a newly designed aluminum high-speed roller shutter. The door panel is made by aluminum and Polyurethane foam in the middle, it is durable and has good thermal insulation. The most impressive feature is the special track, which is spiral or oval. The door panel will up and down through the spiral track, therefore there is no friction among the door panels, which make the door operating very fast while reducing the noise.

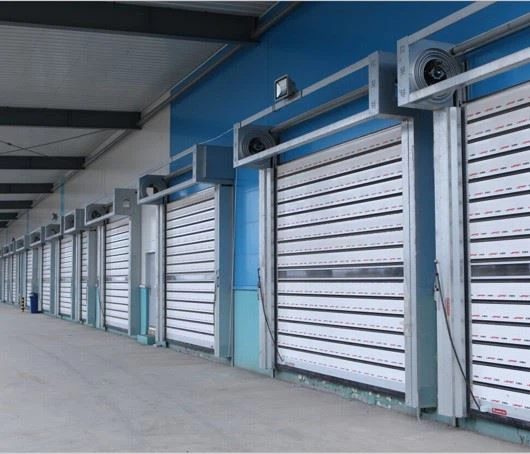

Art.1055.111 Aluminum high-speed rolling door
Aluminum High-speed Roller Shutter Features:
* Powerful servo motor, preise and stable operation
* Independent control box, with clear display on the outside box, different language can be chosed
* Spiral or oval track, avoid the friction among door panels
* With the motor brake, the door can be manual released when power-off
* Multiple trigger method: radar, infrared sensor, swith button, remote control, loop detector (optional)
* Steady operation, heat insulation, wind resistant, dust-proof, moisture-proof, suitable auto industry, food, electric, real estate, fire control doors
* Airbag device and safety beam ensure the security
* Multiple colors can be chosed: silver, white, yellow, blue and so on.
* Materials can be chosed: aluminum with polyurethane foam inside / aluminum
* Window can be customized.
Lift method:
Spiral lift for enough header sapce Oval lift for limited header space
Sliding lift for lower header space Vertical lift for limited depth space
Technical parameter:
Specification | 1055.111A | 1055.111B | 1055.111C |
Door size (max mm) WxH | 8000x9000 | 8000x9000 | 3500x3800 |
Door panel thickness (mm) | 43 | 80 | 23 |
Opening speed (m/s) | 0.8-2 (adjustable) | ||
Closing speed (m/s) | 0.8-2 (adjustable) | ||
Wind-resistant | 5KPa, 12 grades | ||
Seal ability | ≥700Pa | ||
Air-tight | 0.62m3/(m2.h) | ||
Heat-insulating | K≤<0.5W/(m2.K) | ||

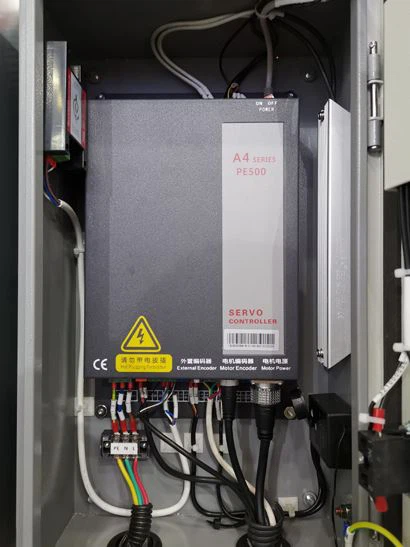

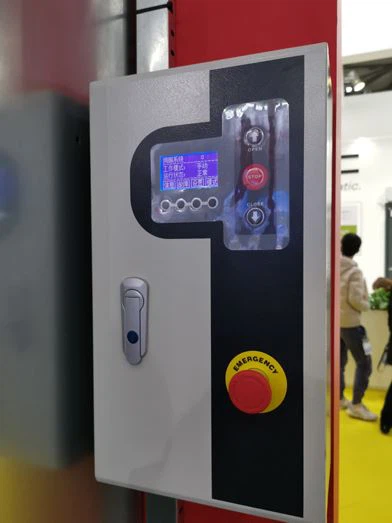

Control box: independent control box, with clear display, different language can be chosed according to your needs

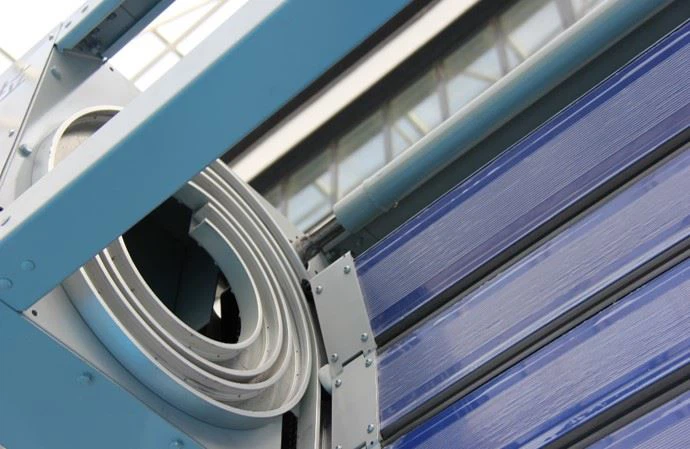

Spiral track: reduce friction and noise, extend the service life
Durable hinge
FQA
Q1:Are you trading company or manufacture?
A: We are a facory with 20 years experience.
Q2:What is your main products?
A: We can supply all automatic doors and opener, also we can do OEM and ODM.
Q3: How can i know your price?
A: We can quote for you according to your details, such as door material, inner core, size and hareware brand etc. We would be very appreciated if you can show us your drawings of the projects.
Q4: What's your delivery time?
A: For door operator, usually within 12days after payment.
For automatic door, usually witin 20 days after payment.
The exact leatime depends on the model and quantity of products
Q5: What do we do in case of Problems?
A: In case of our quality problems, we will provide replacement by delivery new parts for you.
