Medical Air-tight Sliding Door

Medical Air-tight automatic door/ Hospital operating room door 1071.203 Different from ordinary doors, medical doors are always used in hospitals and clinics with high security requirements. As one kind of medical door, this air-tight door is especially suitable for operating rooms. Owing to the sealed and pressurized design of door body, the circulation of internal and external environment can be effectively isolated.

Send Inquiry

Description

Technical Parameters

Medical Air-tight Sliding Door Features:

*Power beam hanging design, easy to install and maintain

*Built-in crash belt, smooth and straight surface

*Double layer insulating glass for windows, smooth appearance of door leaf, convenient for cleaning and maintenance

*Automatic door sinking design, maximum sinking distance 15mm, stronger air tightness

*The door body is designed to be sealed and pressurized, 10 mm inward in a closed state, which can effectively isolate the circulation of internal and external environment

*Unique slide rail linkage, effectively reduces the mechanical noise and makes it silent when operating

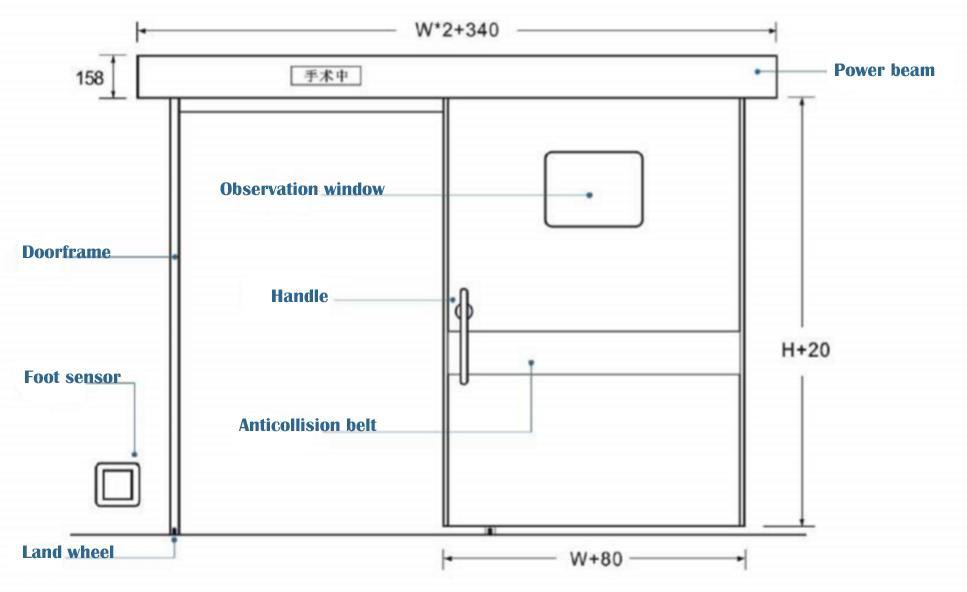

Door width	Passage width+80
Door height	Passage height+20
Door thickness	42mm
Door weight	60kg
Power supply	AC220V ±10%, 50-60Hz
Hold-opening time	2-20s (adjustable)
Opening speed	250-500mm/s
Closing speed	250-500mm/s
Manual thrust	＜100N
Tight closing force	＞70N
Power consumption	＜150W
Working temperature	-20℃-50℃

1-4

1-5
