I. Core Performance: Powerful, Efficient, and Reliable
110W High-Power DC Motor: Delivers a maximum thrust of 400N·m, effortlessly driving single gate leaves weighing up to 600kg. Achieves exceptional efficiency with an opening/closing time of just 16 seconds.
Ultra-Quiet Operation: The 3500r/min high-speed motor, paired with a precision mechanical structure, ensures smooth and stable movement with an ultra-low noise level of ≤56dB.
All-Weather Durability: Built with an IP54 protection rating to effectively resist dust and water, it is perfectly suited for complex outdoor environments. The wide operating temperature range of -45°C to +65°C ensures reliable performance in extreme climates.
II. Intelligent Safety: Precise Control & Emergency Ready
Precision Limit Switches: Automatically stops the gate at the exact open/close endpoints to prevent over-travel or collisions, significantly enhancing safety and extending equipment lifespan.
Emergency Manual Release: In the event of a power outage, the clutch can be easily released to switch to manual mode, ensuring unobstructed emergency access.

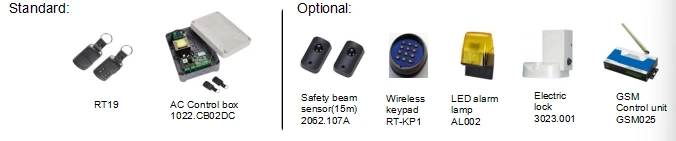

Flexible Configuration: Supports both single and dual-gate control. Optional accessories like remote controls and solar power systems are available for expanded functionality.
III. Structural Design: Compact, Robust, and Easy to Install
Optimized Articulated Arm Design: Maximizes torque transmission and provides superior resistance against wind pressure and impact, adapting seamlessly to various gate structures.
Space-Saving Footprint: With compact dimensions of 282×270×191mm, it saves installation space and integrates cleanly without compromising the aesthetic of your gate.
IV. Hassle-Free Maintenance: Built for Long-Term Stability
Maintenance-Free Operation: The precision internal structure eliminates the need for frequent servicing, significantly reducing long-term operational costs.
Proven Reliability: Rigorously tested for high performance, it is an ideal, worry-free choice for both residential and industrial projects.
Whether for a luxury residence or an industrial facility, the 1023.111 delivers a reliable, quiet, and highly efficient automation solution, making every entry and exit a seamless experience.
Technical parameter
|
Specifications |
1023.111 |
|
Input voltage (V) |
110V/220V |
|
Motor voltage(V) |
DC24V |
|
Motor power(W) |
110 |
|
Motor speed(r/min) |
3500 |
|
Max thrust(N.m) |
400 |
|
Opening time(s) |
16 |
|
Limit switch |
Micro limit switch |
|
Noise(dB) |
≤56 |
|
Protection (IP) |
54 |
|
Environment temperature(℃) |
-45~+65 |
