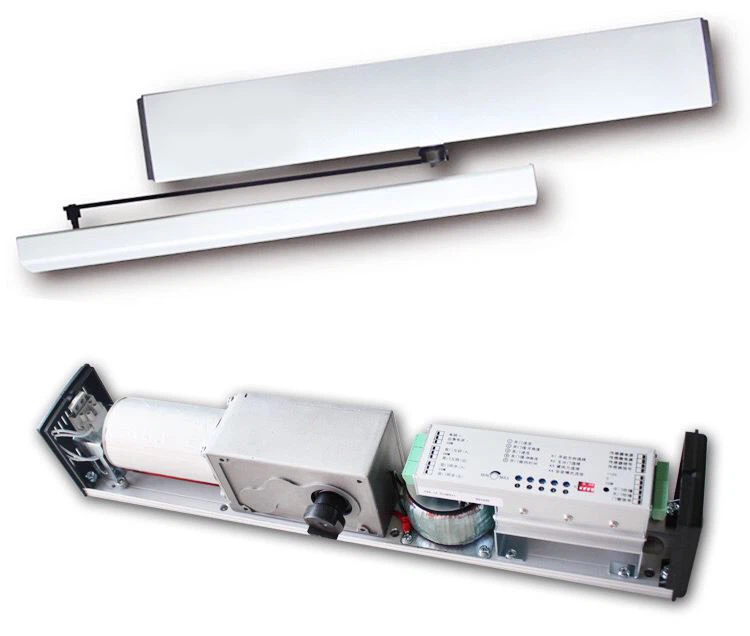

The Commercial Automatic Swing Door Operator is a low energy automatic swing door operator activated by a button. The system operates in both automatic and manual modes, in which the door opens with little pressure and closes slowly, providing easy operation for disabled or pedestrians
Adopting advanced wide voltage technology, it can be used almost all over the world, whether it is urban power consumption peak or power shortage. Remote regions. More energy-efficient and durable than ordinary single-input voltage.
, with one automatic door opener for inner and outer swing doors and two stainless steel barrier buttons for automatic doors. The system is designed to protect your door and features automatic and manual door opening and closing. A simple and safe system for offices, hospitals, nursing homes, banks, commercial establishments and more.
Technical parameters:
|
Specifications |
Light-Swing 1093.1830 |
||
|
Door width(max)inch(mm) |
39.4"(1200) |
Opening speed |
250~450mm / sec |
|
Door weight(max)lbs. (kg) |
220(100) |
Closing speed |
250~450mm / sec |
|
Product dimensions inch(mm) |
20.3"×3.7"×3.5(515×95×90) |
Opening/closing time(sec.) |
3~7 |
|
Product weight(kg) |
6.5 |
Hold-open time(sec.) |
1~30 |
|
Output torque(N.m) |
65 |
Ambient temperature(℃) |
-20~+55 |
|
Motor power(W) |
50 |
Protection class |
IP41 |
|
Power standby(W) |
<2 |
Co5mpression force on the door |
By switch |
|
Power Required(VAC,Hz) |
110/220,50/60 |
Left/right hand setting |
By switch |
|
Rated current(A) |
<1 |
Push &Go function |
★ |
|
Power Output(max)(VDC mA) |
12,500 |
Protection against obstruction |
★ |
|
Shaft opening angle(°) |
45~135 |
||
