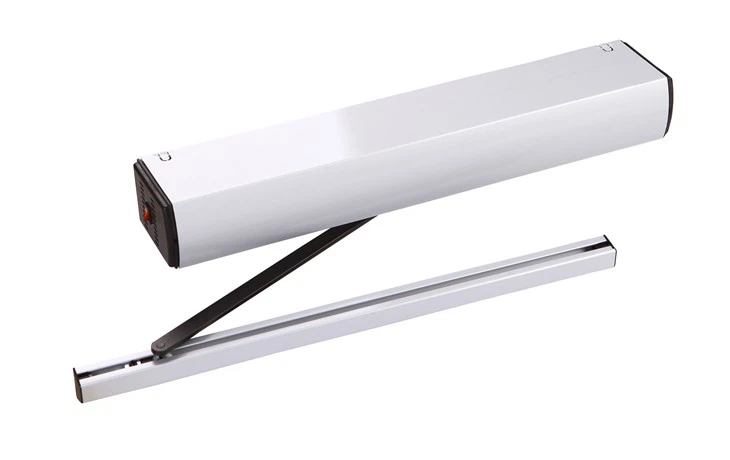

●Commercial Automatic Door Opener is an effective solution for a variety of applications.
● Installed above the aisle, this Commercial Automatic Door Opener provides a simple and fast automation solution for swing doors, whether new or refurbished. Makes movement easier and solves various access problems in many types of medium to high traffic buildings.
● Its sleek, modern design with aluminium head hides a powerful operator capable of operating doors weighing up to 120kg.
● Multi-function, can run in various modes (automatic, open, close, manual, close, etc.), low energy consumption, allowing the infirm to move freely.
● Its flexibility also lies in its high configurability and easy connection to other devices: programmable inputs and outputs can be connected to indoor/outdoor radars, switch safety devices, switch type control, electric locks via crash panels or door frames, and many more
|
Features: *2 million times of service life ensure stable and long-time use. *Superior safety protection function, reverse against obstruction on door closing.Economic brushless motor, and easy gears, cost-effective *Running parameters can be easily adjusted by the built-in control panel *Innovative design of mechanical part, easy and efficient to install. articulated arm, sliding arm & track both available, can be mounted on hinge side and opposite hinge side *One model suit both left and right hand doors, provides interfaces of sensors, building intercom system, access control system, safety beams, electric locks, fire alarms, power output, wall switch, and remote controls *Support double door master and slave synchronization and two doors interlock function. *Emergency power supply can be configured when necessary to meet security requirements. *Suitable for non-wind resisted interior residential doors, meeting room door, washroom and so on |
 |
|
Specifications |
Light-Swing 1093.1830 |
||
|
Door width(max)inch(mm) |
39.4"(1200) |
Opening speed |
250~450mm / sec |
|
Door weight(max)lbs. (kg) |
220(100) |
Closing speed |
250~450mm / sec |
|
Product dimensions inch(mm) |
20.3"×3.7"×3.5(515×95×90) |
Opening/closing time(sec.) |
3~7 |
|
Product weight(kg) |
6.5 |
Hold-open time(sec.) |
1~30 |
|
Output torque(N.m) |
65 |
Ambient temperature(℃) |
-20~+55 |
|
Motor power(W) |
50 |
Protection class |
IP41 |
|
Power standby(W) |
<2 |
Co5mpression force on the door |
By switch |
|
Power Required(VAC,Hz) |
110/220,50/60 |
Left/right hand setting |
By switch |
|
Rated current(A) |
<1 |
Push &Go function |
★ |
|
Power Output(max)(VDC mA) |
12,500 |
Protection against obstruction |
★ |
|
Shaft opening angle(°) |
45~135 |
||
