Outdoor fast speed swing gate opener 1092.1823B/C
Automatic Fast Speed Swing Gate Opener Features:
1. The installation effect is neat and beautiful, saving space
2. Multi-stage gear, low noise design, quiet experience.
3. DC brushless motor, can be intensive and frequent use.
4. Ultra-low temperature design, can be used in outdoor -42℃ environment.
5. Good waterproof performance, can be used outdoors for 10 years.
6. Fully digital control parameter adjustment and error codes indication.
7. Priority input port for fire alarm emergency.
Automatic Fast Speed Swing Gate Opener
Technical data | 1092.1823A | 1092.1823B | 1092.1823C |
Motor voltage | 24V DC | 36V DC | |
Input power | 220V/50zh, 110V/60Hz | ||
Max torque (N.m) | 60 | 70 | 110 |
Door width (max/mm) | 1100 | 1100 | 1200 |
Door weight (max/kg) | 100 | 150 | 400 |
Opening speed | 3-5 sec | ||
Hold-open time | 1-30 sec | ||
Sensitivity against obstacle | 1-10 | ||
Opening angle | 45-150︒ | ||
Latch force (grade) | 1-10 | ||
Wind resistant | Yes | ||
Master and slave | Yes | ||
Ambient temperature | -42℃-+60℃ | ||
Product size (mm) | 330x80x122 | ||
Product weight (kg) | 9 | 9 | 10 |
Multi-stage gear
Accessories (Standard):
Control box
Remote control RT18
Accessories (Optional):
Wireless disabled pushbutton switch 2021.510
Temperature screening access control with face recognition 2012.1082

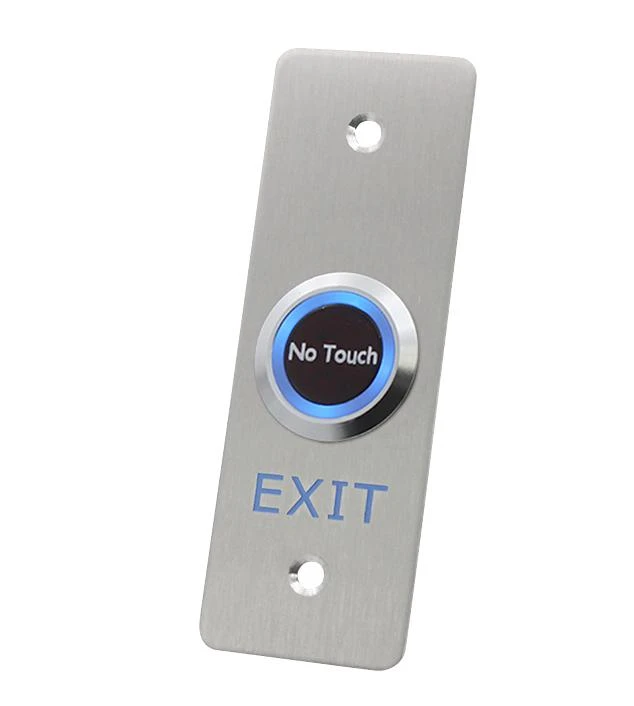

Touchless IR hand sensor switch 2064.211S

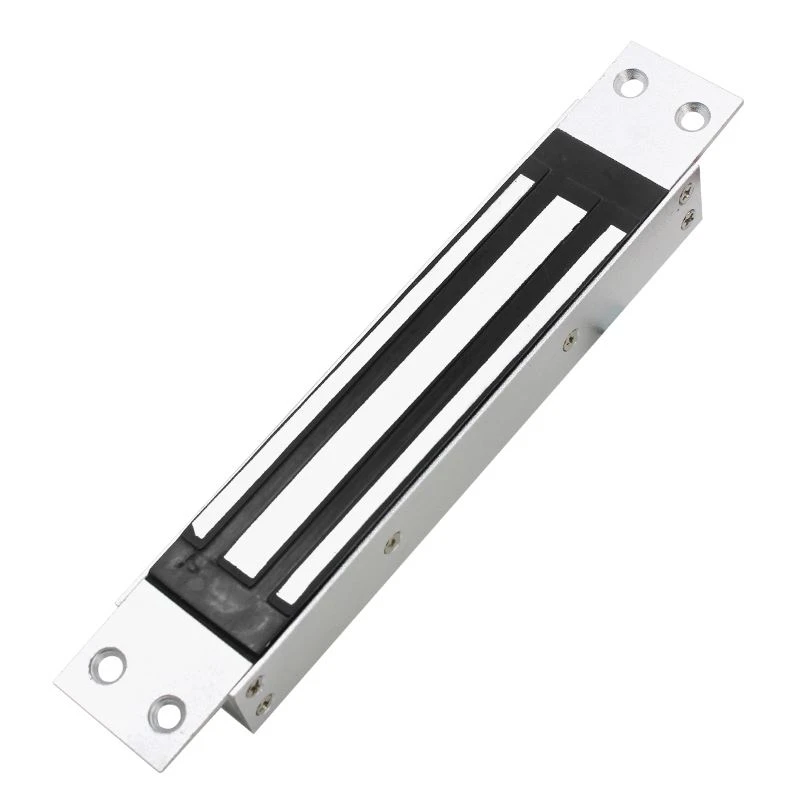

2041.102 Electromagnetic lock
