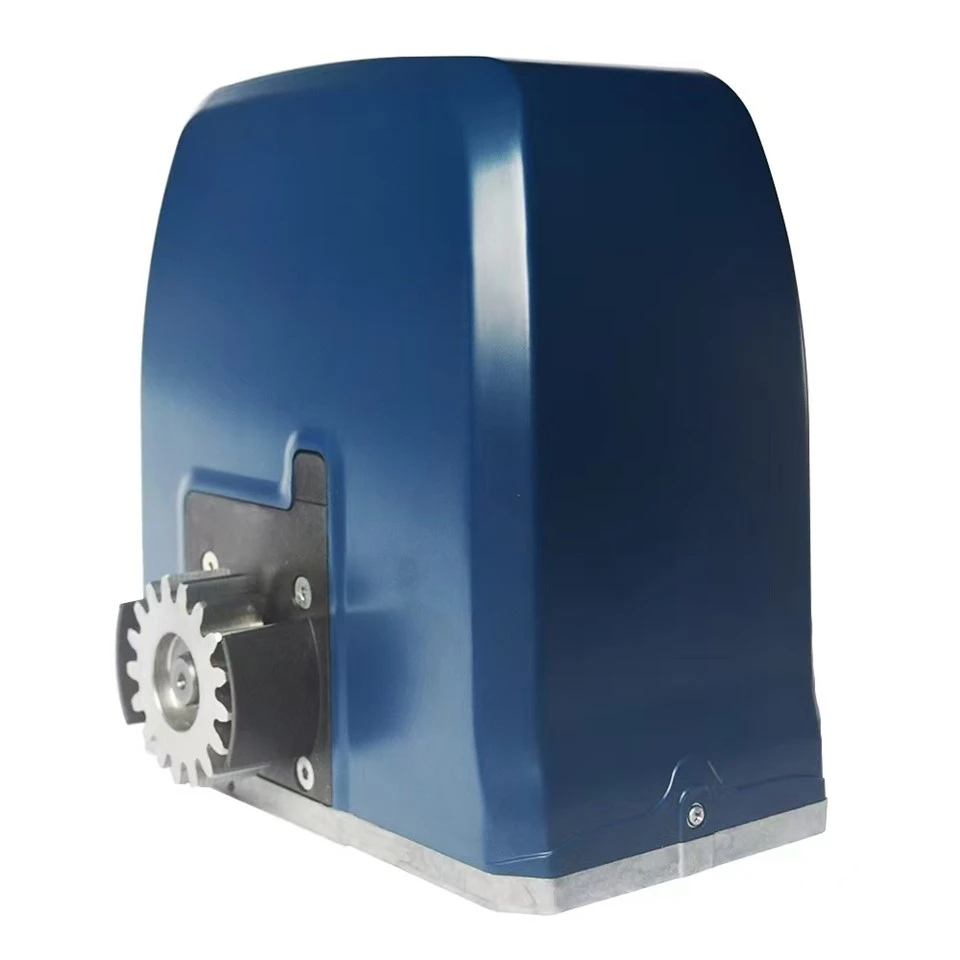

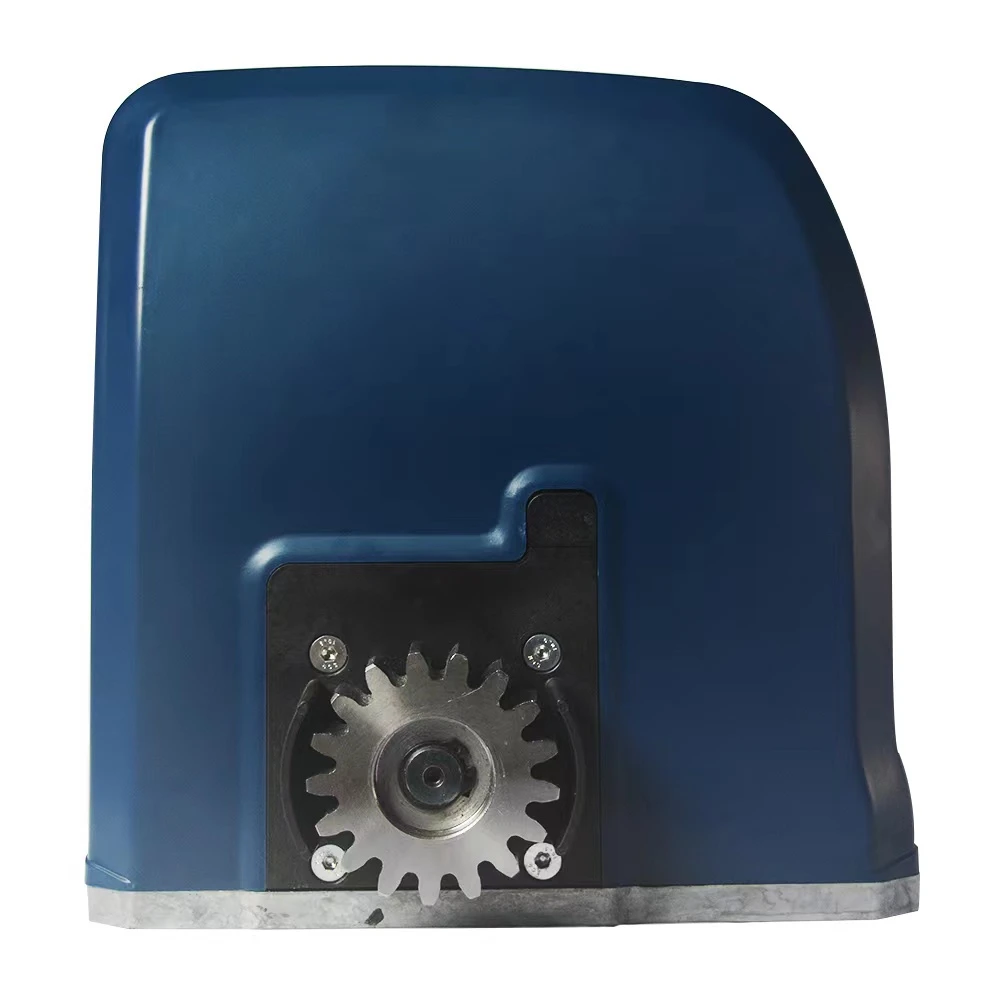

24V DC Sliding Gate Opener MOTOR 800KG manufacturer
1044.104 24V DC Sliding Gate Opener - Engineered for Heavy-Duty Performance & Smart Control
Designed to effortlessly operate sliding gates weighing up to 800kg, the 1044.104 combines robust engineering with intelligent features for residential, commercial, and light industrial applications. Its self-developed control board ensures ultra-quiet operation, frequent cycle durability, and seamless integration with modern smart home systems.
1044.104 Sliding gate opener Key Advantages

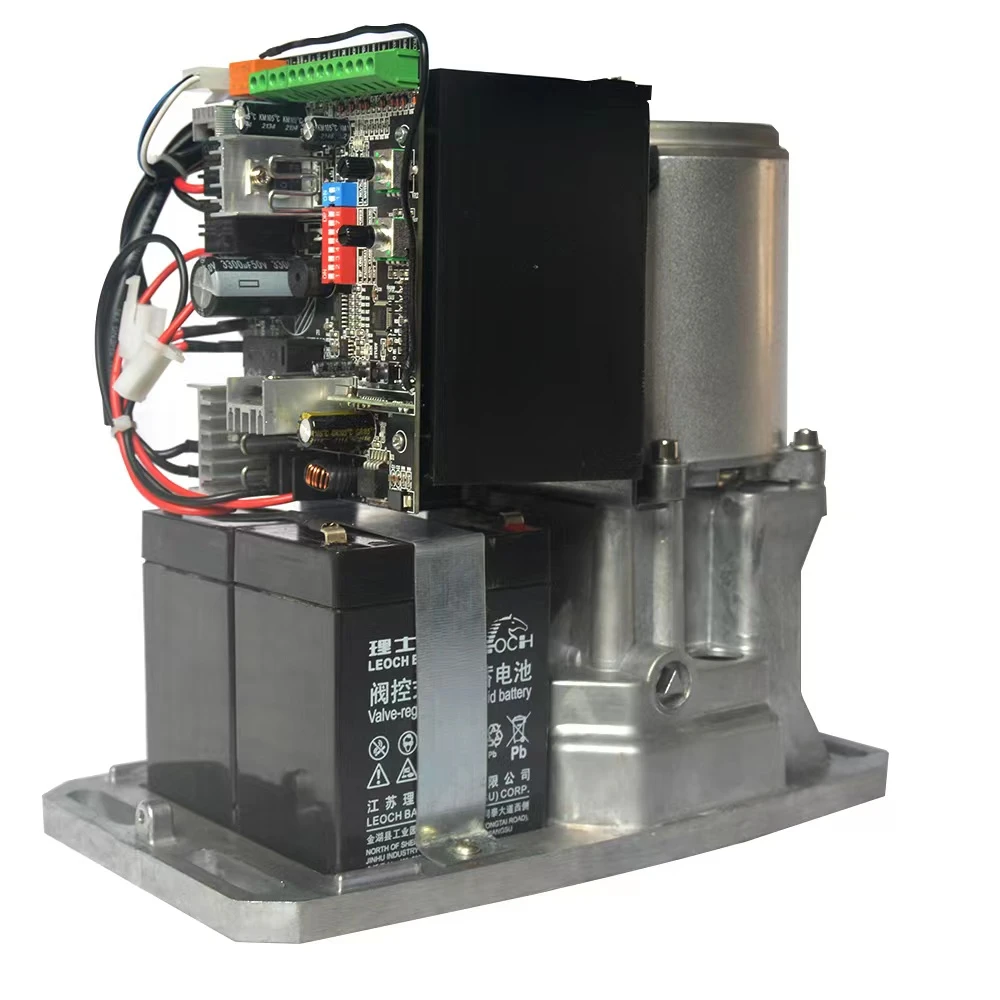

Innovative Self-Design Control Board
Proprietary electronics deliver enhanced reliability, smoother motion profiles, and extended service life under high-frequency use.
- Ultra-Quiet Operation (≤55dB)
Ideal for noise-sensitive environments such as villas, hospitals, or urban residences - operates whisper-quiet even during peak usage.
- Smart Motion Control Features
- Soft Start & Soft Stop: Reduces mechanical stress and enhances user comfort.
- Obstacle Detection & Auto-Rebound: Automatically reverses upon encountering resistance for safety.
- Automatic Closing: Programmable timer or sensor-triggered closure for convenience and security.
- Host-Guest Mode: Allows temporary access authorization without compromising main system settings.
- Flexible Power & Connectivity Options
- Optional Backup Battery: Ensures uninterrupted operation during power outages.
- Remote Mobile Phone Control: Manage gate operations via smartphone app from anywhere.
- Compatible with Solar Panels (optional): Eco-friendly energy solution for off-grid installations.
- Robust Environmental Resilience
- Operating Temperature Range: -40°C to +75°C - performs reliably in extreme climates.
- IP57 Protection Rating: Dust-tight and protected against temporary immersion in water - suitable for outdoor mounting.
- Certified Safety & Compliance
Meets international standards including CCC and CE certifications for electrical safety and electromagnetic compatibility.
1044.104 24V DC Sliding Gate Opener Technical Specifications
|
Specifications |
1044.104 |
|
Input Voltage |
110V/220V,50~60Hz |
|
Output torque(N.m) |
19 |
|
Max gate weight(kg) |
800 |
|
Output voltage(V) |
DC 24V |
|
Motor power(W) |
110 |
|
Motor speed(rpm) |
1500 |
|
Gate speed(m/min) |
12 |
|
Limit switch |
Spring/Magnetic(NC/NO) |
|
Noise(dB) |
≤55 |
|
Temperature(℃) |
-40～+75 |
|
Gear teeth (T) |
19 |
|

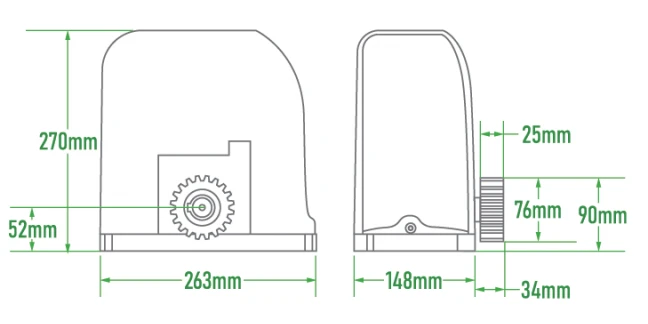

Size(mm) |
W263*D148*H270 |
|
Protection(IP) |
57 |
