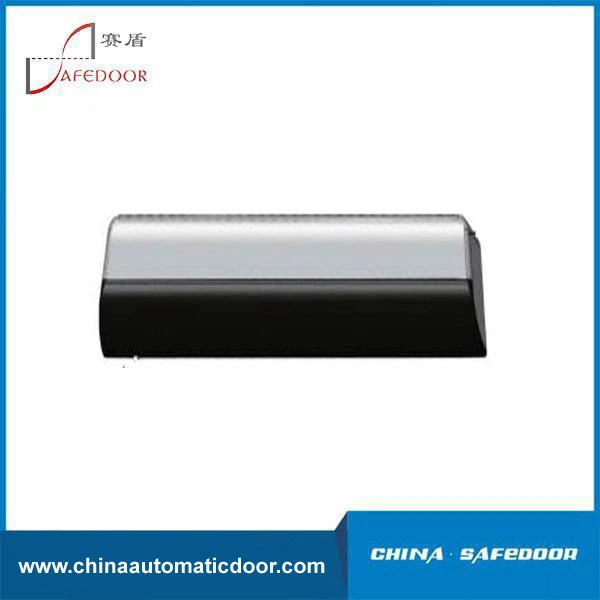

Radar And Presence Sensor

This radar and presence sensor C8 combines Doppler radar for activation as a solution for sliding doors. It can operate in very harsh environments such as very reflective floors, blizzards, rain, lighting. This is a microwave sensor with fast response speed, high sensitivity, wide sensing area, high accuracy and stable safety.

Send Inquiry

Description

Technical Parameters

Radar and presence sensor

Art.No C8 (Zen safe)

Radar And Presence Sensor Features:

1. Strong anti-interference and fast response speed

2. High sensitivity, wide sensing area, high accuracy.

3. Immune to temperature, humidity.

4. Detecting angle adjustable, make sure the precise detection.

5. Intelligent circuit board enhance the sensitivity and stability.

Technical data：
Model	C8
Supply Voltage	12V – 24V AC+-10%；12V-30VDC: 0%/ +10%
Power Consumption	< 3 W
Mounting Height	1.8m-3m
Temperature Range	-25℃-+55℃
Degree of Protection	IP54
	MOTION SENSOR	PRESENCE SENSOR
Detection mode	Green light:motion Minimum detection speed:5m/s	Red light:exist Standard response time
Technology	Microwave Doppler radar Transmitting frequency:24.150Ghz Transmit power:<20dBm EIRP Transmit power density:<5Mw/cm²	Background analysis in active infrared Spot diameter：standard 6cm Number of spots：24 light curtains per Number of curtains:1
Angle (adjustable)	15°-45° vertical direction	-5°-+8°
Output	Relay (dry contact) Maximum contact voltage: 42VAC/DC Maximum contact current: 1A (resistive) Maximum conversion power: 30W (DC) / 60VA (AC)
Output holding time	0.5s

slidingdoor
