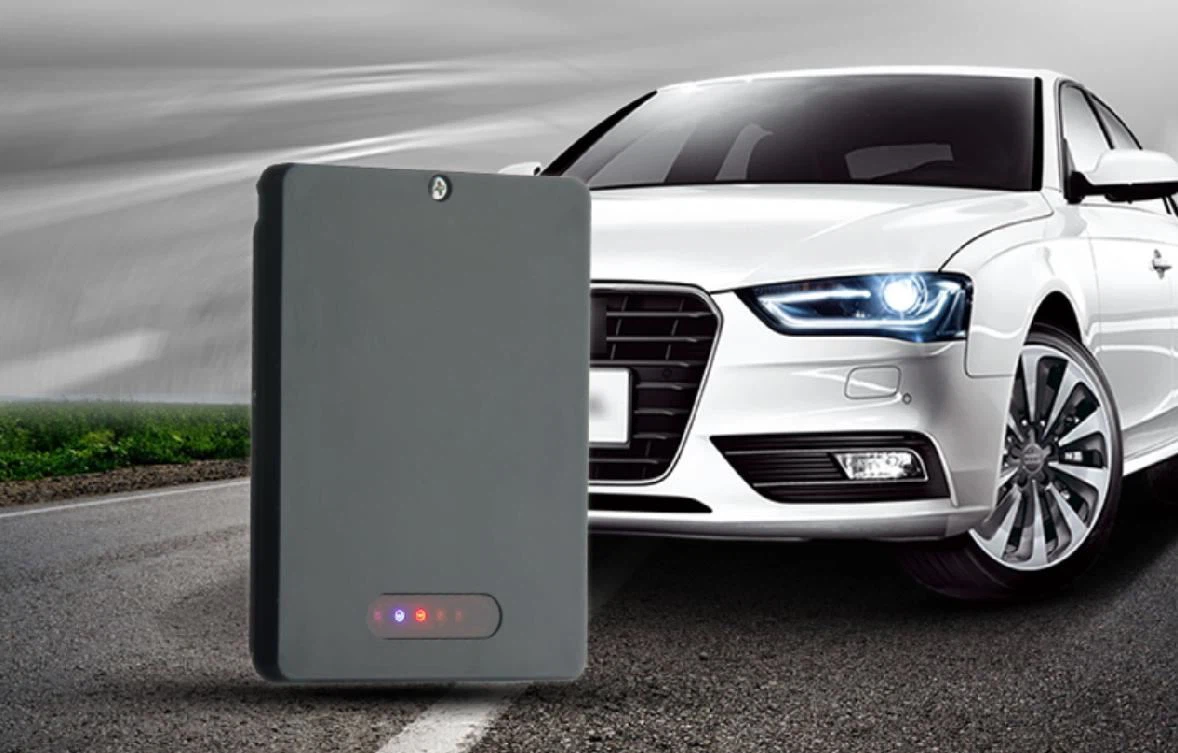

Radar Detector / Vehicle detection sensor
Art.No 1031.BM06
This is a special radar detector tailored for vehicle parking access control systems. It adopts 60GHZ frequency millimeter-wave radar control chip with 2T4R radar antenna. Through the technical means of distance measurement, speed measurement, and direction identification in the setting area, the anti-fall radar can detect vehicles, non-motorized vehicle and pedestrians, and protect them from being hit by the barrier gate.
Detector Features:
*Various anti-smashing modes: large cars, small cars, motorcycles, electric cars, pedestrians.
*Specific area detection mode: detectable distance 0.1m-20m.
*Special scene customization: distance detection, speed detection, movement detection.
Technical data：
Model | 1031.BM06 |
Transmit frequency (GHz) | 60G/77-81GHz |
Radar antenna (TR) | 2T4R |
Working voltage (v) | 5-24V |
Ambient temperature | -40℃~+80℃ |
Power consumption | Less than 1.6W |
IP | 65 |
Size (mm) | H112*W82*L24 |
Debugging method | One-button learning |
Horizontal width (m) | Default +- 0.5m (+-1m dial code adjustable) |
Detection accuracy (m) | 0.1m |
Output mode | Relay signal, support customization |
| Delay output | 1-5 seconds adjustable |
TRADITIONAL LOOP DETECTORS:
*High cost during installation to cut and recover the pavement
*High cost of maintenance because loops need to be replaced about every two years
TRADITIONAL INFRARED DETECTORS:
*Difficult to install.
*High maintenance cost.
*Damage to the pavement.
*Poor adaptability.
*High false alarm rate.
RADAR DETECTOR:
*Trigger radar can detect vehicles accurately.
*Side-mounted, highly adaptable and reliable with scene self-learning.
