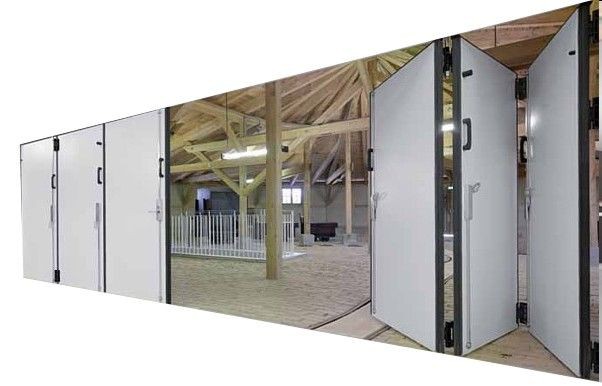

Automatic Industrial Folding Door

Automatic Industrial Folding Door

* Partial open is permitted thanks to the multi-leaf door panels, reducing opening/closing time and loss of building energy
* Top and bottom panel are both sealed by double layer brush, and each panels with rubber seal
* Small swing door in door can be available
* Manual door equipped with handle and up and bottom bolt lock; Automatic door motor lock the door on closure

Send Inquiry

  • Product Details

Art. 1061.204

Features:

* Door panel frame concealed, built-in galvanized steel framework, filled with integral urethane foam, with stronger thickness 57mm/77mm

* Partial open is permitted thanks to the multi-leaf door panels, reducing opening/closing time and loss of building energy

* Top and bottom panel are both sealed by double layer brush, and each panels with rubber seal

* Small swing door in door can be available

* Manual door equipped with handle and up and bottom bolt lock; Automatic door motor lock the door on closure


Folding door technical parameter:

Thickness (mm)

57

77

Single leaf (standard)

650-1190

Single leaf (special)

1500

Leaf height

8000

13000


Motor technical parameter:

Specifications

1022.111

1022.111D

Gate width/leaf (m)

2~4

Gate weight/leaf (kg)

400~600

Power supply(V)

120/230 AC

24DC

Power(W)

110

180

Revolution(rpm)

1400

2200

Noise(dB)

≤56

Protection (IP)

44

Environment temperature(℃)

-45~+65
