Residential Swing Door Operator

Residential Swing Door Operator

This swing door operator comes with a fire alarm signal access terminal, which can be closed to prevent the spread of smoke or open to facilitate pedestrian escape under the condition of back-up power supply. It is suitable for indoor doors of apartments, villas and other residential quarters; enterprise / company doors, passage doors, conference room doors, public service areas / administrative institutions entrances, toilets and other indoor environments.
Send Inquiry
Description
Technical Parameters

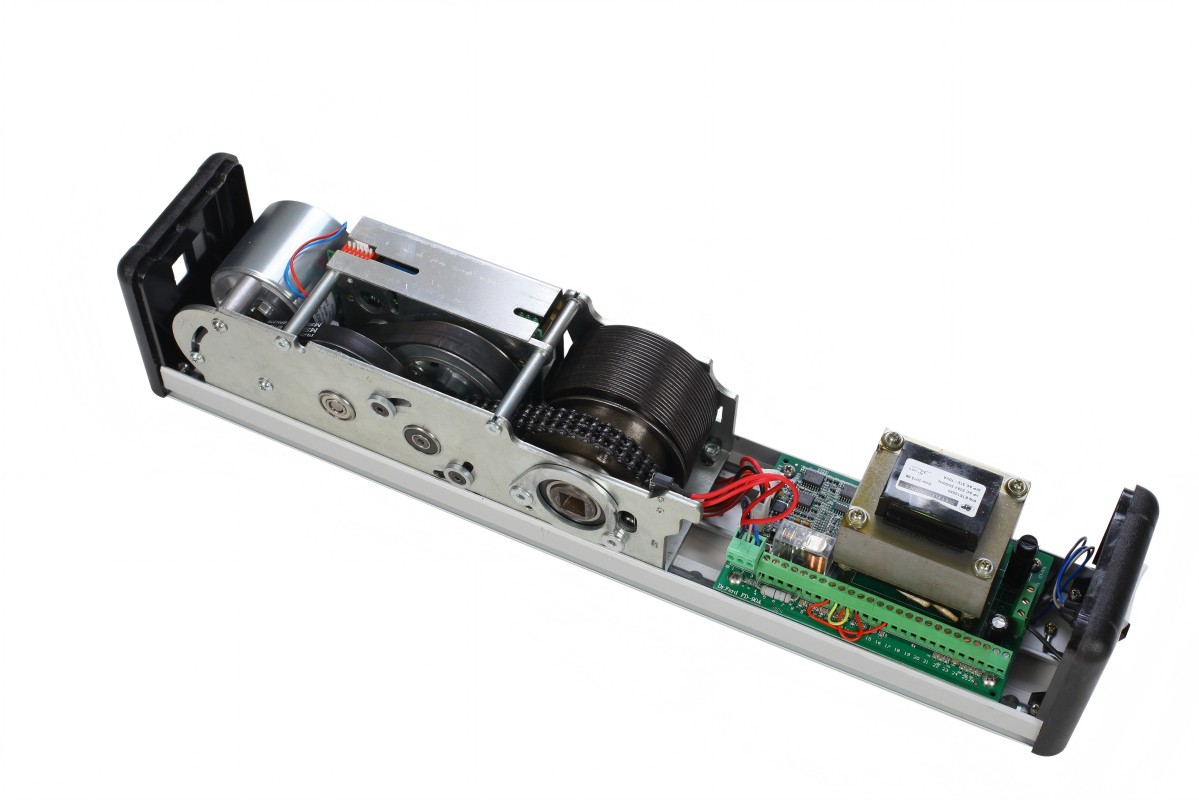

10941840 motor1 10941840 Surface mouting swing door operator



Features of residential swing door operator

1. Microcomputer technology, push the door function

2. Modular design, maintenance-free construction, easy installation and replacement

3. Intelligent overheating and overload self-protection, automatically reversed when blocked during the opening and closing process, safe and reliable

4. Electromagnetic lock control to ensure building safety

5. Intelligent control system with adjustable parameters





Technical parameters:

Specifications

Heavy-Swing 1094.1840

Door width(max)inch(mm)

55"(1400)

Door weight(max)lbs. (kg)

330(150)

Product dimensions inch(mm)

20.8"x3.9"×4"(530×100×104)

Product weight(kg)

11.3

Output torque(N.m)

150

Motor power(W)

85

Power standby(W)

<30

Power Required(VAC,Hz)

110/220,50/60

Rated current(A)

<1

Power Output(max)(VDC mA)

24,1000

Shaft opening angle(°)

45-135

Opening/closing time(sec.)

3-8

Hold-open time(sec.)

1~30

Ambient temperature(℃)

-20~+70

Protection class

IP41

Compression force on the door

By switch

Left/right hand setting

180°rotation

Push &Go function

Protection against obstruction



This residential swing door operator can be widely used in residential areas, retail stores, pharmacies, laundry rooms, offices, bathrooms, hospitals, air showers, clean rooms and other places.

product-1-1

product-806-1707

Competitive Advantage:

1. We are a direct manufacturer, we have a professional self-design team that can meet the most demanding needs.

2. Our products have world-class quality testing. We have CE, UL, ROHS, TUV, CCC, ISO9001 certificates.

3. We provide 24 months warranty for all products.

4. We use high-quality carton, moisture-proof, anti-breakage bubble wrap, and wooden case packing, which can keep the goods intact even in long-distance ocean shipping.

5. Our special inspection and quality control department maintain a strict quality control level. It ensures that all products meet specifications. All incoming goods and raw materials are strictly inspected to ensure their quality and correctness.

6. We have a large production capacity and sufficient safety stock to ensure fast delivery time.

7. We keep innovating and launch new products every year
