Brushless DC Sliding Gate Opener

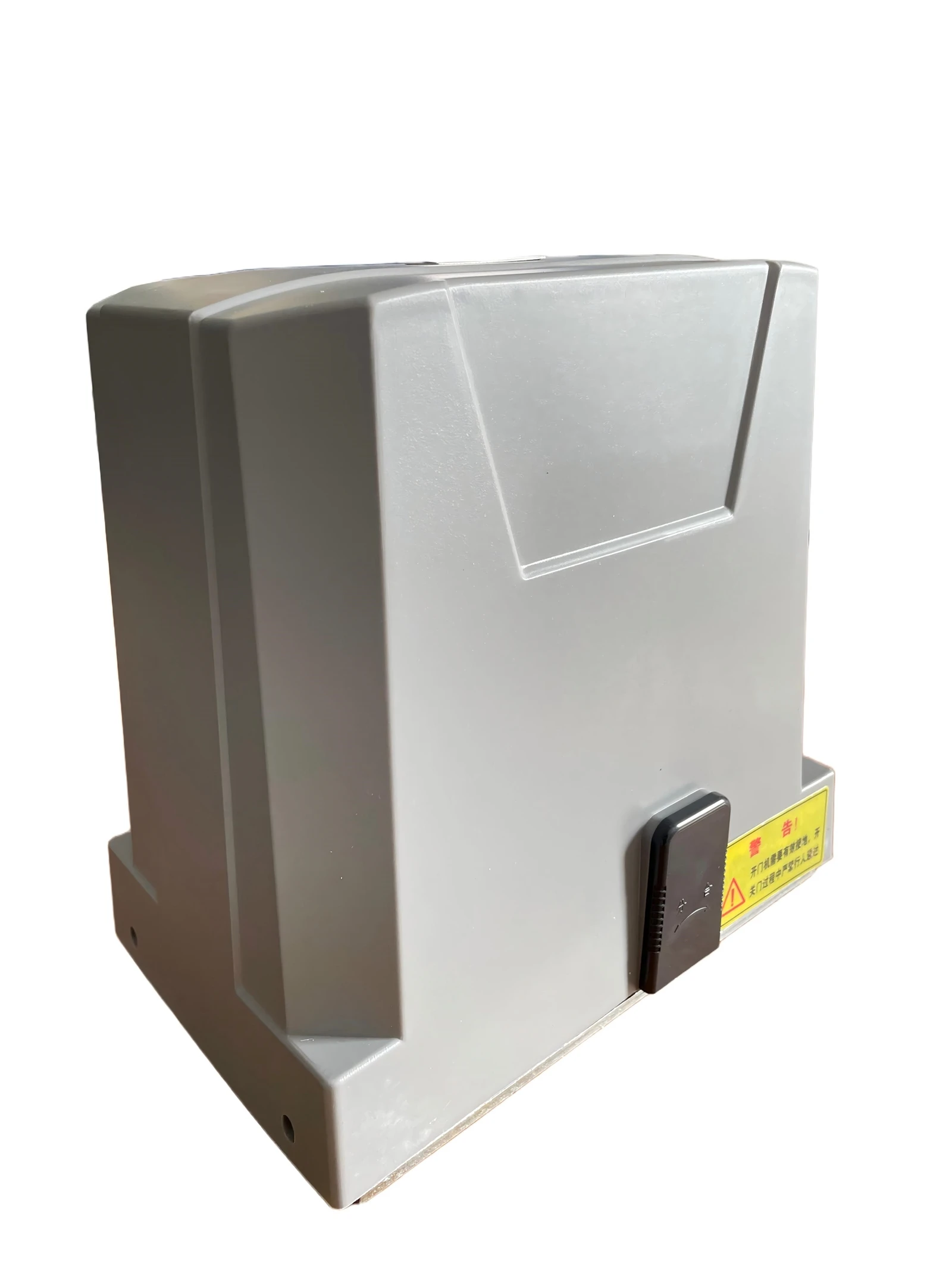

Brushless DC24V Servo Sliding Gate Opener

Art.No. 1041.111

Brushless DC24V Servo Sliding Gate Operator Features：

🚀 Core Technology: Efficiency & Silence
The highlight of this door operator lies in its power system and control method:

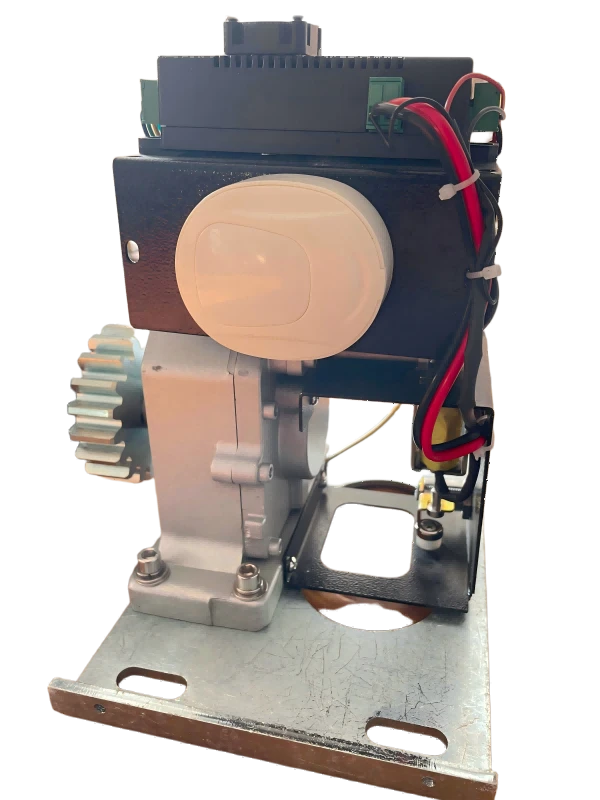

Brushless Motor Technology: Equipped with a DC 24V brushless motor. Compared to traditional brushed motors, it is maintenance-free, spark-free, has a longer lifespan, and offers higher operational efficiency (Max Power 180W).
Precision Servo Control: Utilizes a servo system for closed-loop control, enabling precise management of position and speed, thereby eliminating errors associated with traditional mechanical limit switches.
🧠 Intelligent & User-Friendly Operation
The device's operational logic aligns perfectly with modern usage habits, with the "Convoy Mode" being particularly practical:
Convoy Mode (Anti-tailgating): A highly practical feature for sliding gates. After the first vehicle enters, the system can be set to remain open until the last vehicle has passed, avoiding frequent opening and closing cycles.
Multiple Control Methods: Supports remote controls (up to 8 can be learned), push-button stations, and remote control via parking management software.
LED Status Visualization: Equipped with an LED digital tube that not only displays parameters (Pxx) but also intuitive English statuses (e.g., OPEN, CLOS, HOLD). In case of failure, it displays error codes (e.g., E-24 for low voltage) for quick troubleshooting.

🛡️ Safety Protection Mechanisms
In terms of safety, this door operator features multiple layers of protection:
Anti-Pinch Function: Supports external anti-pinch sensors. Upon detecting a signal, it automatically opens and stays open until the vehicle passes and the signal disappears.
Obstacle Reversal Protection: Features dual parameter settings for sensitivity (F15) and force (F16). If resistance exceeds the set value during closing, the operator automatically reverses to prevent injury or vehicle damage.
Overcurrent Protection: Displays E-99 to trigger protection when current abnormalities occur.
🛠️ Maintenance-Free & Adaptive
Magnetic Limit Switching: Uses magnets and reed switches for limit detection. Being non-contact, it avoids the wear and tear of traditional mechanical limit switches, ensuring greater durability.
Automatic Memory & Self-Learning:
Auto Limit Search: After a power outage and restart, the operator automatically searches for the open/close limits, eliminating the need for manual mechanical adjustment.
Parameterized Settings: Through simple button operations, users can set opening/closing speeds (F00/F01), auto-close delays (F10), etc., to adapt to various on-site environments.
🌍 Strong Environmental Adaptability
Wide Temperature Operation: Operating temperature range is -35℃ to 80℃, ensuring stable performance in both freezing northern climates and hot southern regions.
Protection Rating: The internal controller has an IP44 rating, its design accounts for environments free of corrosive gases and dust. Combined with the external structure, it meets the requirements for outdoor gate usage.
