Patio Sliding Door Operator

The patio sliding door operator has got compact design (72x63.5mm), suit all kinds of existing sliding doors for home and office; The doors don’t have to be hung on the track, instead, leave the door on its own sliding wheels on the floor track, the installer just need to put the door operator on the wall and fix the belt connector on the door leaf, then the door turn to be an automatic sliding door. The system not only apply with sensor, but also suitable for remote control, push button, pet sensor, card reader and so on, so it is easy to equip with smart facilities.

Send Inquiry

Download

Description

Technical Parameters

Art.No. 1072.103

Household sliding door operator, Patio sliding door operator, Kitchen sliding door opener

Patio Sliding Door Operator Features

● Easy installation, no need to change existing door structure

● Safety protection, reverse against obstruction

● System can apply with sensor, remote control, push button, pet sensor, photocell, card reader, electric lock and so on

● Window and door mode both available

● 433.92hz module, can suit with smart-home

● Door of kitchen and balcony, office, shopfront and aisle, sliding windows

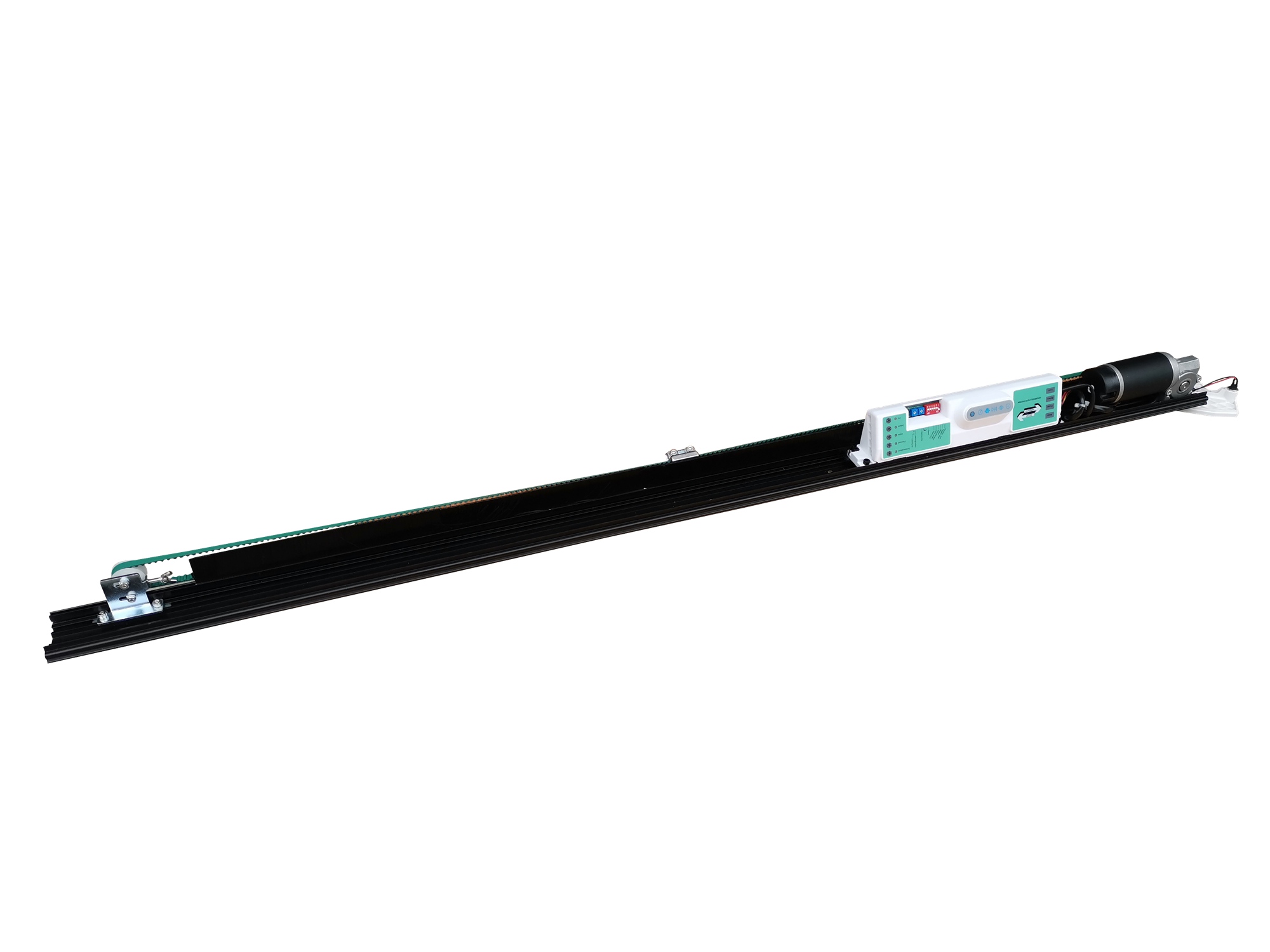

household sliding door operator 2

Aluminum track length 2200mm (standard)

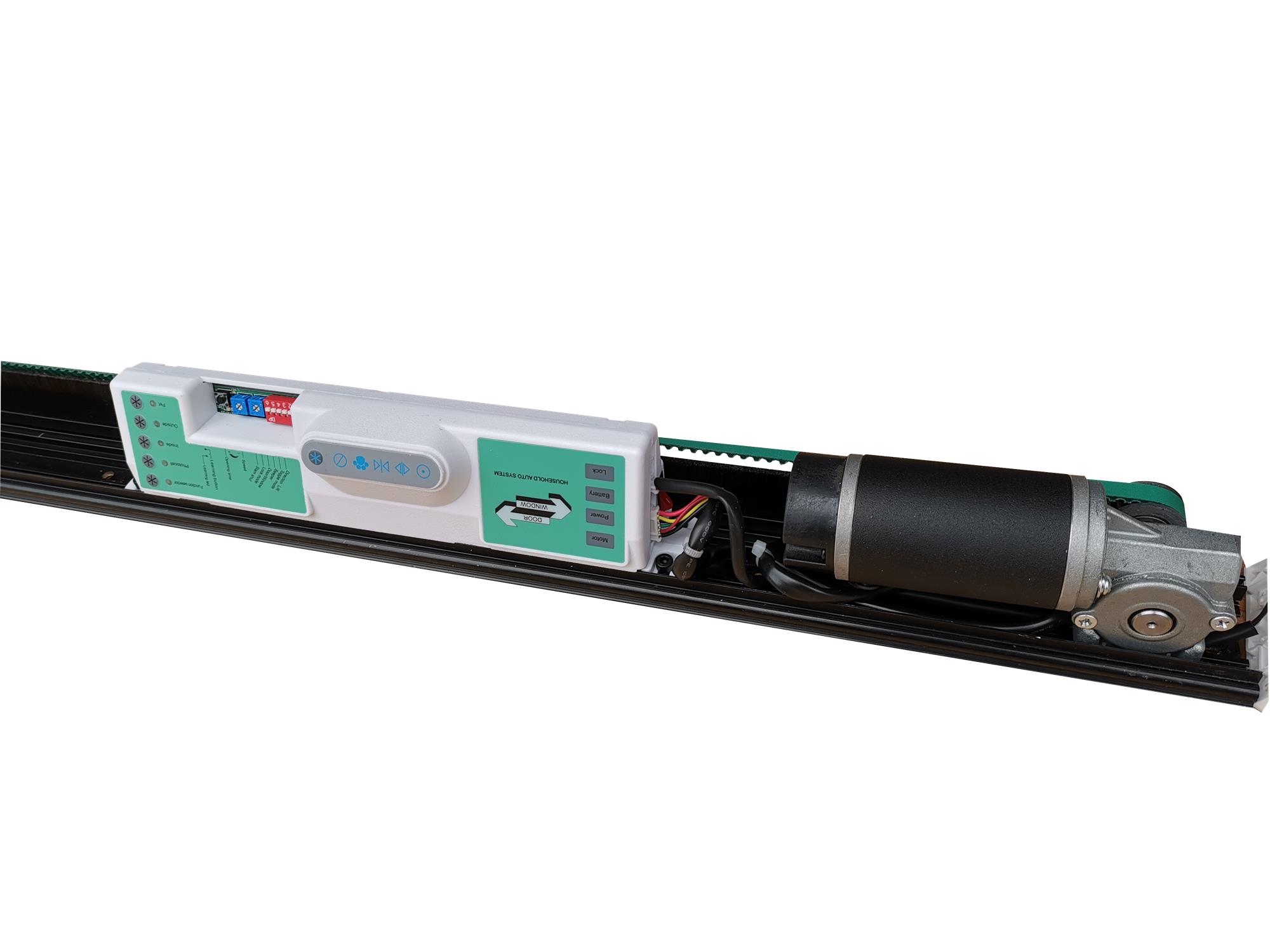

Motor

The small DC24V/ 40W motor can drive the door 2x60kgs quietly.

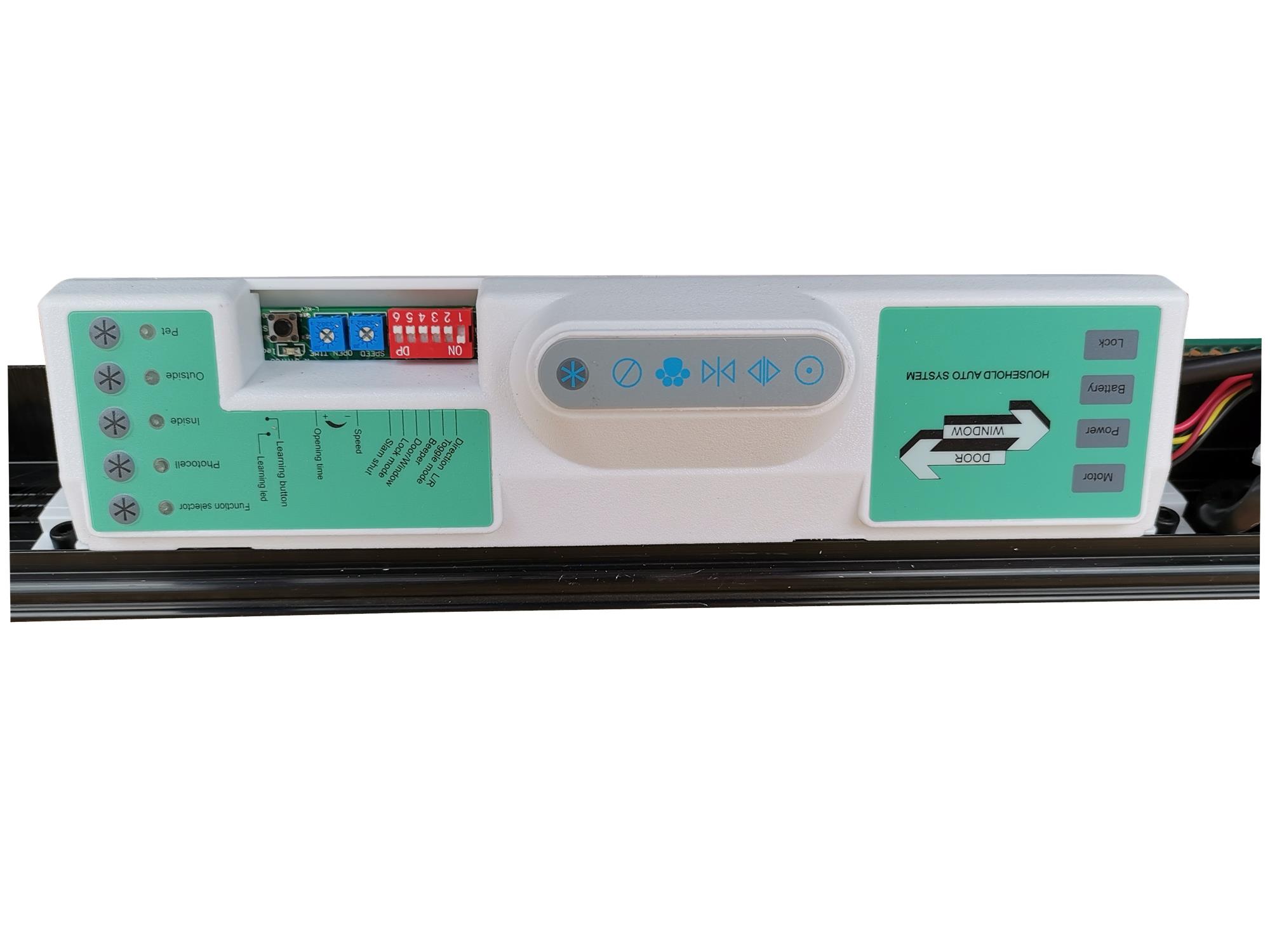

control panel

Automatic/hold open/lock/pet/manual 5 modes selectable

Opening/closing speed adjustable

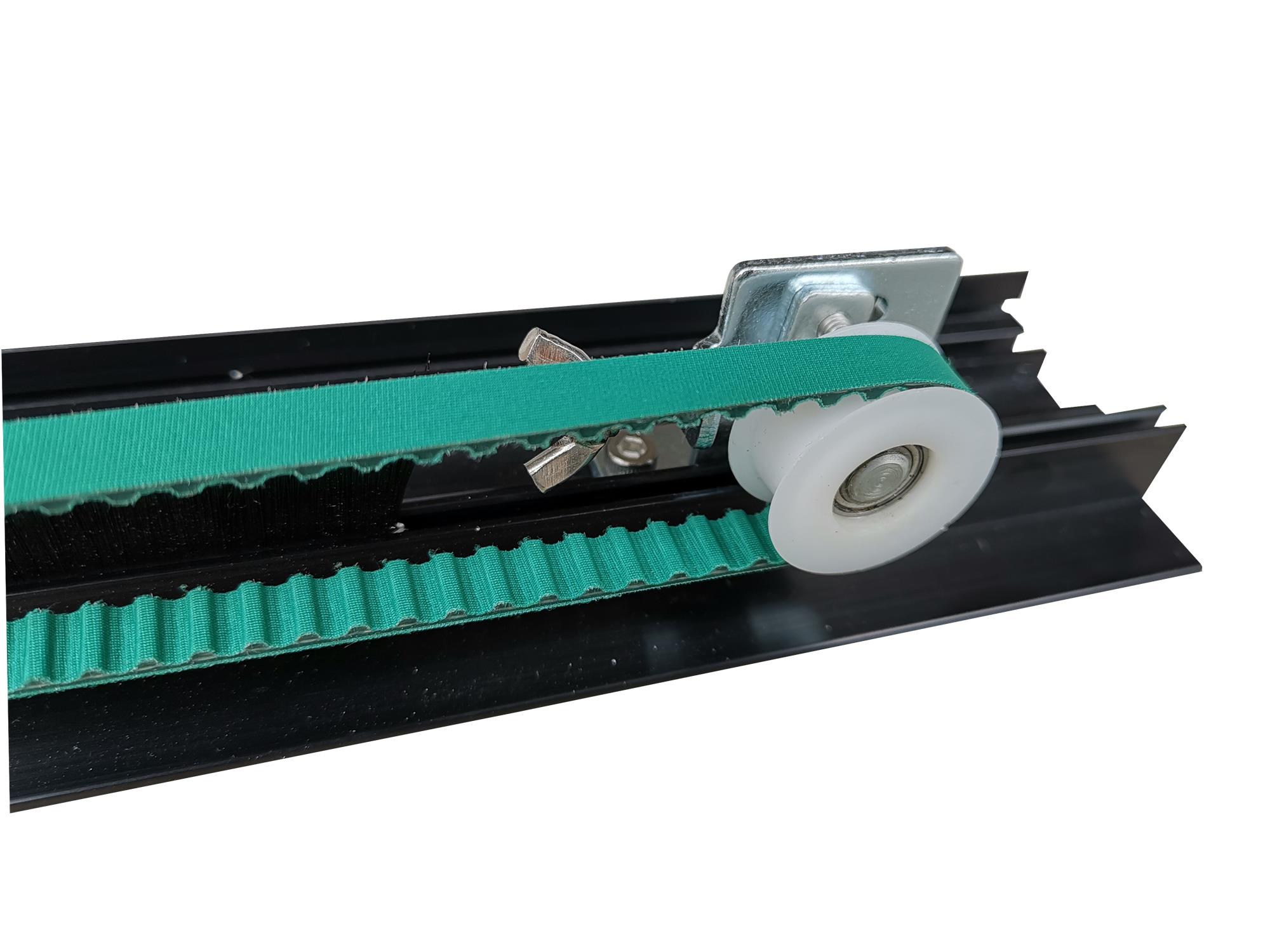

rear wheel

Nylon real wheel, noiseless and durable

casa size

Compact size, suitable for all exisiting patio/kitchen sliding doors

Functions

Automatic	●
Always Open	●
Pet	●
Full Lock	●
Manual	●
Self-learning	●
Self-lock	-
Error Message	●
Fire alarm terminal	-
Access keypad terminal	-
Inter lock function	-
LED display	-
Photocell	●
UPS	●
Electronic lock	●
OEM service	●
CE certification	●
Toggle mode	●
Beep	●

●: Standard function ○: Optional function ―: No function

Technical parameter

Max door weight (single)	1*80kg
Max door weight (double)	2*60kg
Door leaf width	max1.2M
Opening speed	100~400mm/s
Closing speed	120~220mm/s
Motor	24V 40W 3000rpm
Holding time	0-20s
Power voltage	AC100V-220V 50-60Hz
Ambient temperature	-10C°~70C°
Track length	2.2m, 3m(Optional)
