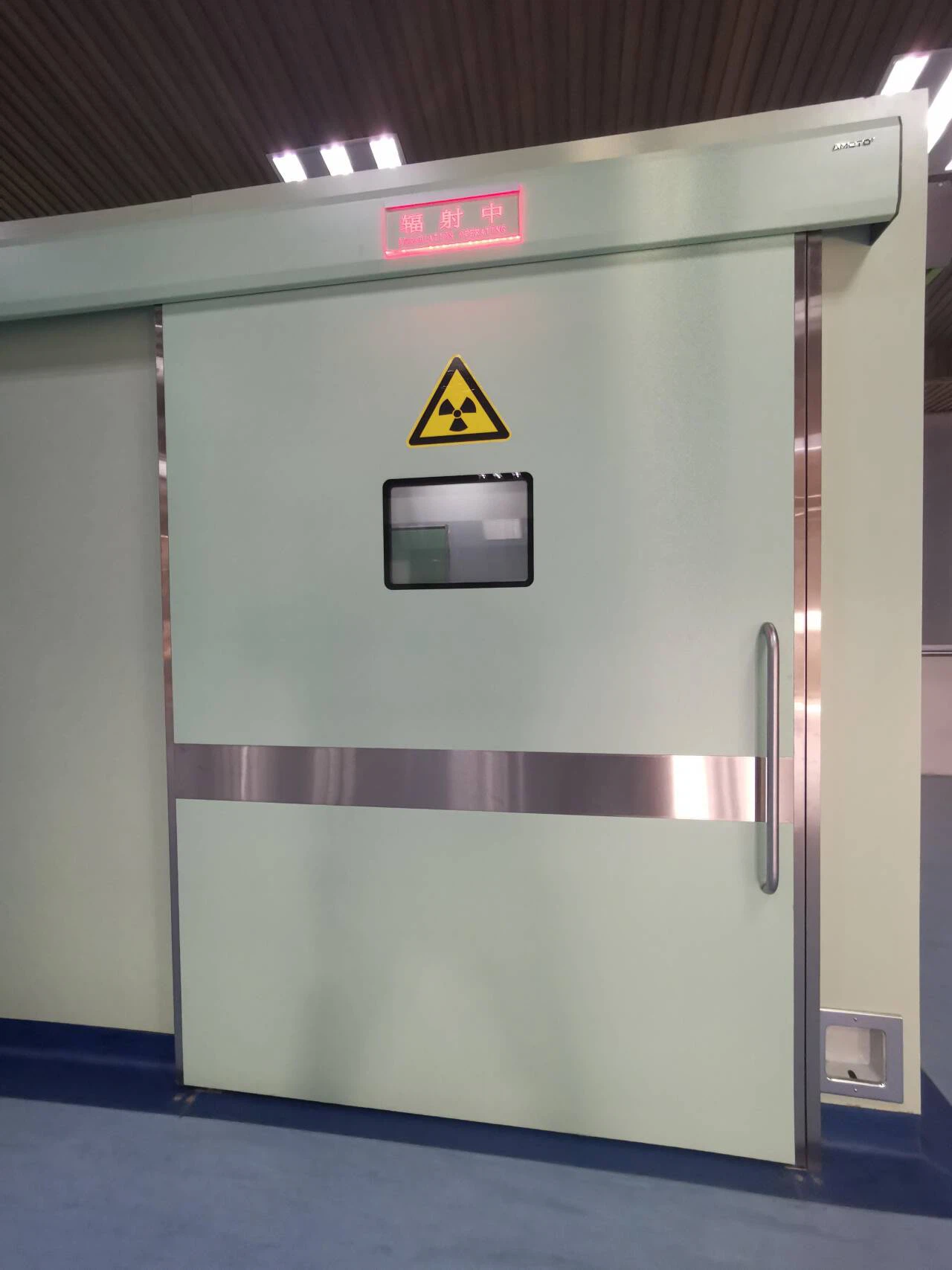

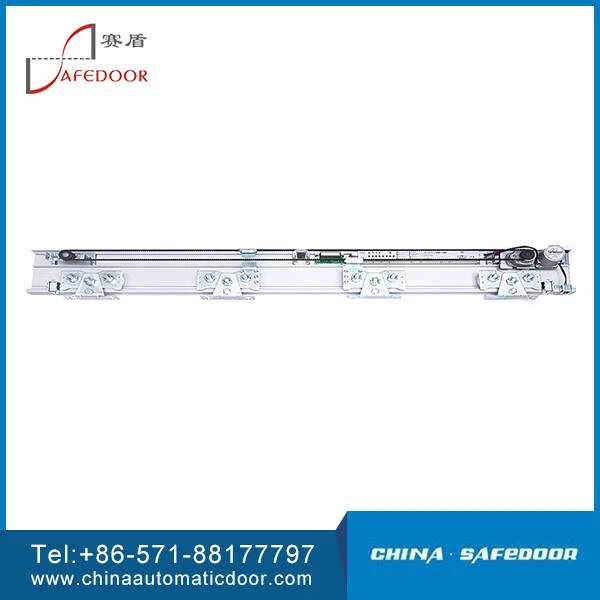

is designed for industrial& commercial heavy duty sliding doors for more than 400kgs/leaf. Ideal for radiology, solid core, lead type, steel framed, extremely thick glazed door applications.

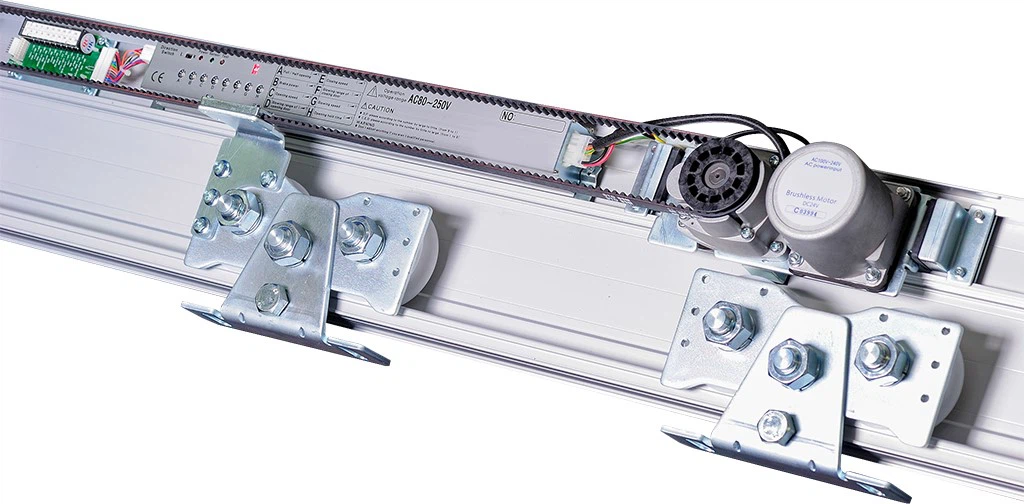

*Powerful 120W brush-less DC motor, suitable for heavy duty sliding door weighing 2*400kgs.
* Low noise of motor, under 52dB.
*Special track and wheels, carrying heavier and more stable.
*Large radius wear-resistant pulley, low noise, longer service life.
*Photobeam can be connected with high safety.
*Full open and partial open can be selected, manual open in case of power failure
*Good for factories, hospitals, airports, and other high security areas.
Technical parameter:
|
Specifications |
1071.121 |
|
|
Door type |
Single |
Bi-part |
|
Door weight (max)(kg) |
1x500 |
2x400 |
|
Clear passage width(mm) |
500~6000 |
500~6000 |
|
Opening speed (adjustable) (mm/s) |
600 |
550 |
|
Closing speed (adjustable) (mm/s) |
600 |
550 |
|
Hold-opening time (adjustable)(s) |
1~20 |
|
|
Input voltage (V) |
100-240 |
|
|
Motor (VDC) |
24V Brushless motor |
|
|
Power voltage (VAC, Hz) |
AC100V-240V, 50/60Hz |
|
|
Motor power (W) |
120 |
|
|
Consumption power (W) |
120 |
|
|
Working temperature (℃) |
-20~+50 |
|
