How It Works ?
Semi-automatic sliding door closer use a rack and pinion mechanism connected to a hydraulic damper and a spring.
1. Opening (Manual): When you push the door open, the sliding movement turns a pinion gear. This gear pulls a piston rod against a spring inside a hydraulic cylinder, compressing the spring and pushing hydraulic fluid through small internal channels.
2. Closing (Automatic): When you let go, the compressed spring provides the force to push the piston back. The hydraulic fluid is forced back through a separate, adjustable valve, which controls the speed of the closing action. This ensures a smooth, controlled, and quiet close, preventing the door from slamming shut.
Semi-auto Sliding Door Closer Features:
* Open the sliding door manually, spring close automatically.
* No motor, no drive device, smooth and silent operation, energy saving and cost saving.
* Closing force and speed can be adjusted.
* Space saving, easy installation, free-maintenance.
* Suitable for single leaf or bi-parting household sliding doors.
Semi-auto Sliding Door Closer Technical parameters：
|
Model |
1072.102A |
1072.102B |
|
Door weight (Kg/leaf) |
10-80 |
30-100 |
|
Door width (mm) |
700-1200 |
1200-1600 |
|
Closing drive |
Spiral spring |
|
|
Control system |
Fluid friction resistance |
|
|
Spring thickness (mm) |
0.265 |
0.385 |
|
Rail length (mm) |
2200 |
2200 |

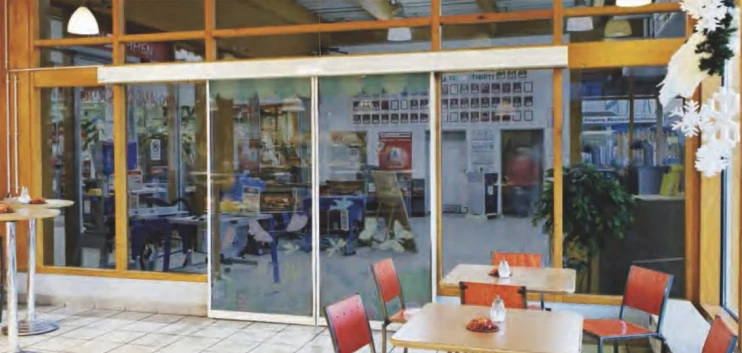

Semi-auto Sliding Door Closer
|
Semi-automatic door (double open) components list |
||
|
Description |
Quantity |
Nuts and bolts |
|
2.1m track |
2 pcs |
|
|
Plastic gear rack |
2 pcs |
|
|
Track of plastic gear rack |
1 pc |
|
|
Steering wheel |
2 pcs |
|
|
Hanger A |
2 pcs |
4 pcs hex screw |
|
Hanger B |
2 pcs |
4 pcs hex screw |
|
Hanger shim |
8 pcs |
|
|
Spring drive device |
1 pc |
|
|
Stopper |
1 pc |
|
|
Door guider |
2 pcs |
M5 tapping screw |
|
Threading support |
2 pcs |
2 pcs M5 cross screw |
|
Rear brake |
1 pc |
2 pcs M5*19 cross screw suit |
|
Rope |
2 pcs |
|
|
Full open device |
1 pc |
1 pc M5 cross screw |
|
End wheel |
1 pc |
|
|
8 pcs M8*22 cross screw suit |
Semi-auto Sliding Door Closer Left open & Right open
Semi-auto Sliding Door Closer Double open
