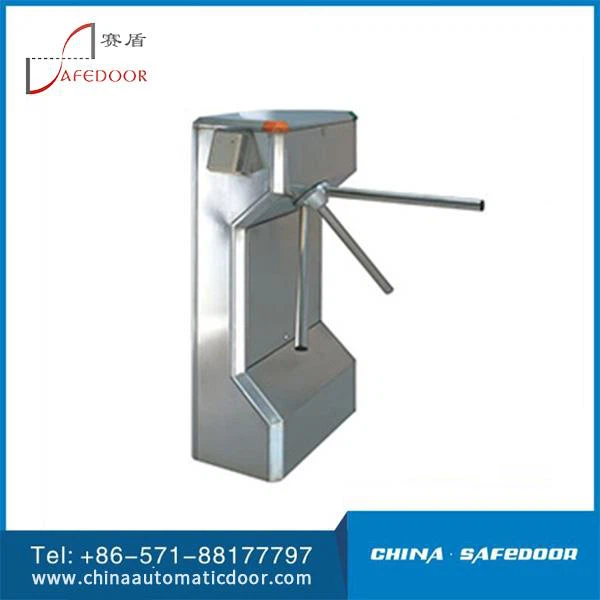

Tripod Turnstile1033.201
Standing Tripod Turnstile Features:
* Beautiful stainless steel housing, solid and durable, elegant, aesthetic design
* Solid practical construction, waterproof, fire resistant, cold resistant
* No noise, hydraulic steady running
* Prompting message indicates the passage direction
* Bi-direction access control and single direction access control available
* Personalized connection interface, ideal for the integration with barcode cards, IC cards, ID cards, magnetic cards reader & writer, LCD display screen
* Meet the fire control requirement: Automatically open on power cut
* Cost effective solution for high traffic location such as entrance of industry, metros, offices, library, tourist spot, cinema and airports etc.
Specifications | 1033.201A | 1033.201B | 1033.201C | ||
Working mode | Automatic | Semi-auto | Mechanical | ||
Size (mm) | 420x330x980 | 420x330x980 | |||
Weight (kg) | 35 | 35 | |||
Passage width (mm) | 600 | ||||
Tripod length (mm) | 510 | ||||
Power supply (VAC, Hz) | 220±10,50/ 110±10, 60 | - | - | ||
Power consumption (W/V) | 100/24 | - | - | ||
Ambient temperature(℃) | -15～+60 | - | - | ||
Humidity | 95% | - | - | ||
Pass speed（IC） | 40person/min | - | - | ||
Input interface | +12V level signal, or DC12V pulse signal width＞100ms, activating current＞10mA | - | - | ||
Emergent action | Release on power cut | - | - | ||
Communication interface | RS485 | - | - | ||
Communication distance (m) | ≤1200 | - | - | ||
