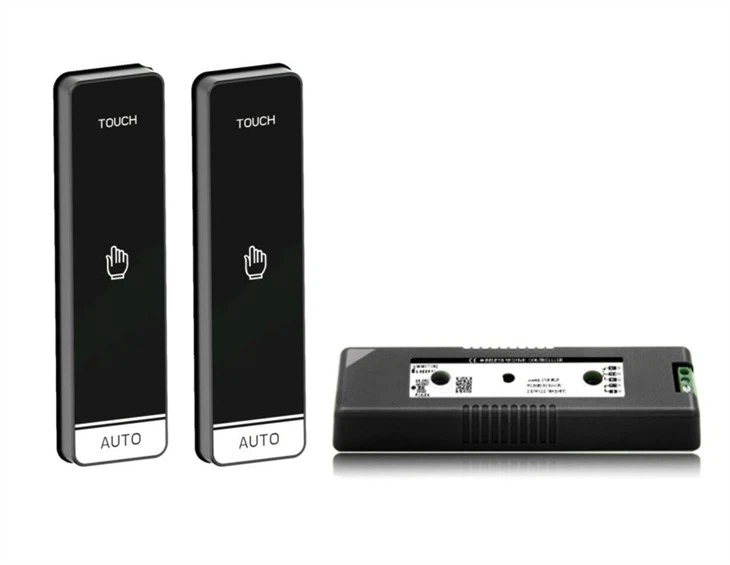

Wireless touch switch 2014.602P
Wireless Touch Switch Features：
Anti-static screw fixing design, Wireless and wired optional.
Low interference, wide range of use, long touch switches.
The receiver provides a wide voltage input design, and 12-36V AC and DC power input are valid.
When the signal is received, the red light will turn green at the same time to confirm whether the signal is valid.
Wireless Touch Switch Technical data： | |
Model | 2014.602P |
Support function | Touch induction |
Stand-by current | 35μA |
Standby time | 1year |
Working humidity | ≤90% |
Ambient temperature | -30°C-50°C |
Launch frequency | 2.4GHZ |
Battery | Button battery 3.3V 2 pcs |
Installation method | Fixed base plate, wireless |
Wireless distance | 30M |
Product size | 134MM (H) X34MM (W) X11.4MM (L) Switch |
110MM (H) X30MM (W) X15MM (L) Receiver | |
Receiver | |
Stand-by current | 26mA (DC12V) |
Power supply | AC/DC12-36V |
Working current | 95mA (DC12V) |
Relay contact | 20A DC 14V |
