Art.No 2052.104

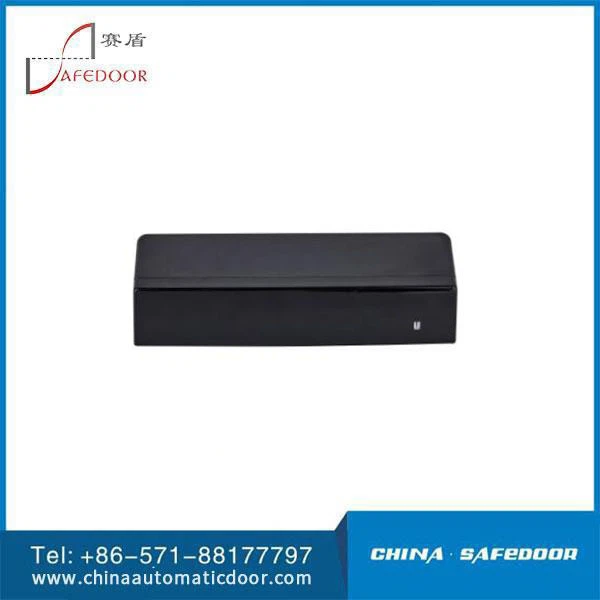

Electromagnetic Wave Sensor/Rader Features:
1. 24.125GHz detecting module, immune to humidity.
2. The single-directional mode only accept the signal from coming way, and shield the signal from leaving way.
3.It can effectively adapt to certain special conditions, free from the influence of temperature, airflow, dust and smoke, and is fully applied to high-demand areas such as commercial, industrial and automatic control.
Electromagnetic Wave Sensor/Rader Technical data： | |
Model | 2052.104 |
Transmitting frequency | 24.125Ghz |
Transmitting power | <20dbm EIRP |
Transmitting frequency density | < 5mW/ cm ² |
Install angle | 15°, 30°, 45°, 60° |
Install height (max) | 3.5m |
Detecting area | 4x2m (W x D) |
Detection mode | Motion |
Min detecting speed | 5cm/s |
Voltage | 12V-24V AC(+/-10%), 12V-30V DC |
Power | <2W (VA) |
Relay contact | NO / COM |
Max contact voltage | 42V AC-60V DC |
Max contact current | 1A |
Max switch power | 30W(DC) / 60VA(AC) |
Output holding time | 0.5 s |
Ambient temperature | -20~55℃ |
IP | 54 |
Cable | 2.5m |
